The IV pole h442_16 is a professional support designed to ensure maximum stability and reliability during infusion procedures in clinical settings. The hybrid structure in stainless steel and aluminum gives the device high mechanical resistance and a long operational life, making it ideal both for high-intensity hospital wards and qualified home care. The movement system, based on large-diameter twin wheels, allows for smooth and safe movement even with significant loads.

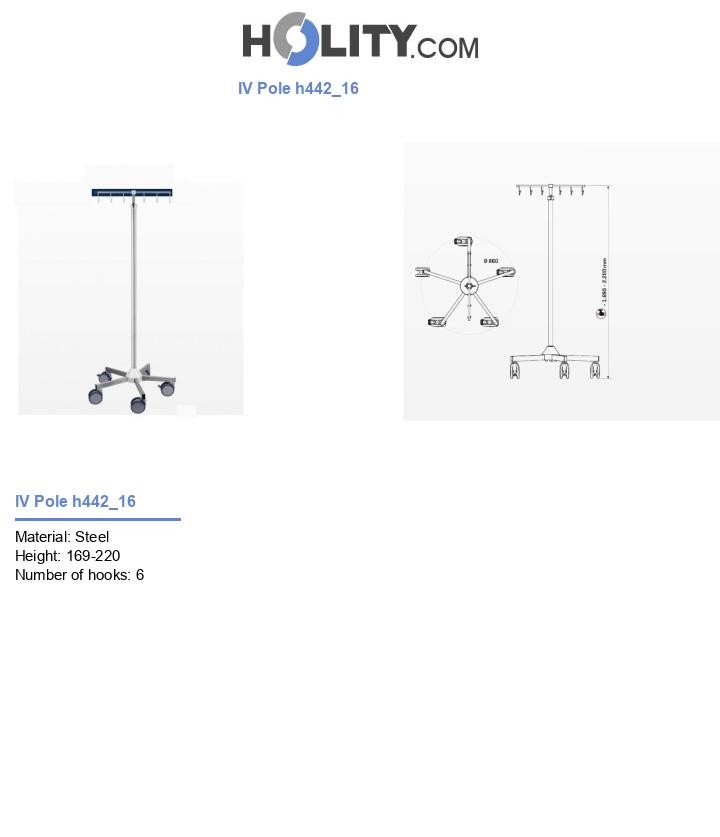

Technical characteristics
Material: Stainless steel and aluminum structure for high resistance
Suspension system: Stainless steel bottle holder bar with 6 safety hooks (capacity 2 kg per single hook)
Height adjustment: Telescopic system with screw safety locking
Adjustment range: From 1,690 mm to 2,200 mm
Tubular dimensions: Outer tube Ø 38 mm / Square inner tube 25 mm
Outer tube length: 1,420 mm
Support base: Diameter approx. 860 mm for maximum anti-tip stability
Rolling system: Twin double wheels Ø 125 mm
Regulatory compliance: DIN EN 60601 (electrically conductive)
Total weight: Approx. 25 kg
Image purely indicative
User benefits
Structural stability: The wide base and the 25 kg weight lower the center of gravity, drastically reducing the risk of accidental tipping.
High load capacity: The presence of 6 reinforced hooks allows for the simultaneous management of multiple bottles, optimizing complex infusion therapies.
Superior mobility: The 125 mm twin wheels facilitate crossing small steps and expansion joints in hospital floors.
Electrical safety: Compliance with DIN EN 60601 ensures the dissipation of electrostatic charges, protecting sensitive electromedical equipment.
Guaranteed hygiene: The use of stainless steel allows frequent sanitization cycles with aggressive detergents without risk of corrosion.
Field of application
The h442_16 pole is specifically designed for intensive care, operating rooms and inpatient wards where precision and stability are essential requirements. Thanks to its robustness, it is also suitable for home care of patients requiring heavy equipment or multiple infusions. Its antistatic nature allows for its use near vital signs monitors and advanced electronic instrumentation.
Why choose it
This stand represents the correct choice when a support that does not wobble under the weight of multiple bottles is needed. It is suitable for facilities requiring low maintenance and a product capable of withstanding intensive 24/7 use. It represents an investment in operational safety compared to standard lightweight models, offering certified performance according to European standards for electrical conductivity.
FAQ
How does this model differ from standard IV poles?
Unlike economical models, the h442_16 uses a heavy 25 kg base and oversized 125 mm twin wheels, features that guarantee much higher anti-tip stability and maneuvering smoothness.
Is the product suitable for use in environments with electronic instrumentation?
Yes, the pole complies with the DIN EN 60601 standard and is electrically conductive, a fundamental property for preventing the build-up of electrostatic charges in protected medical environments.
What is the total maximum load supported by the hook bar?
The bar is equipped with 6 safety hooks, each of which can support a weight of up to 2 kg, for a total capacity of 12 kg at the top of the pole.
