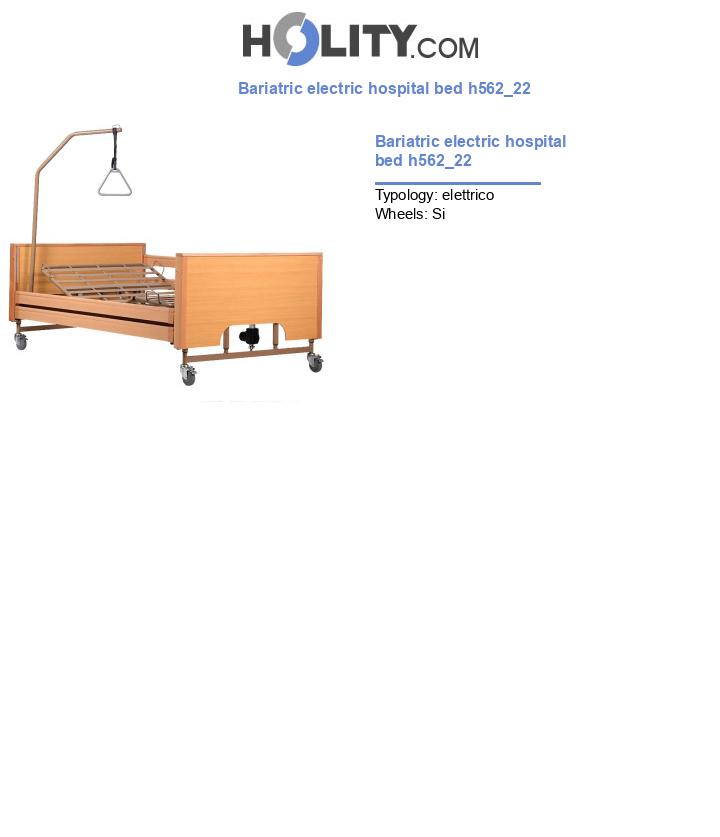

Bariatric electric hospital bed h562_22

€1,440.45 VAT excl.
€1,728.54 VAT incl.
In stock
SKU
h562_22

Electric bariatric care bed with small double bed base. Capacity: 230 kg. Maximum dimensions: 2150 x 1320 mm.

Bariatric bed for hospital or home care with 4-motor electric operation, equipped with a 4-section small double bed base, adjustable independently or jointly, ensuring maximum comfort for the patient. Steel structure with wooden panels and height-adjustable aluminum side protection and containment rails coated with a wood-effect film. Electric adjustment is performed via the supplied handset, while the Trendelenburg and Reverse-Trendelenburg positions are activated thanks to 2 actuators positioned at the ends. The foot section is manually adjusted via a rack system. Included anti-blackout backup battery for emergency situations such as a power failure. In these cases, the battery allows the bed to be returned to the resting position. The base is equipped with 4 swiveling wheels with parking brake. The bed is complete with a convenient patient lifting pole.



Technical features:

  • Electric bariatric care bed
  • Frame material: steel
  • Wooden panels
  • 3 joints
  • 4 sections
  • Small double bed base with mattress retainer blocks
  • Electric adjustment of the backrest and thigh/leg area
  • Additional manual adjustment of the foot area via rack
  • Base on 4 swiveling wheels with parking brake
  • Variable bed base height
  • Maximum overall dimensions: 2150 x 1320 mm
  • Weight: 165 kg
  • Maximum capacity: 230 kg
  • Maximum working load: 280 kg
  • Bed base dimensions: 2000 x 1200 mm
  • Bed base height from the floor: min 380 max 790 mm
  • Headboard/footboard height (from the bed base): 465 mm
  • Internal distance between footboard and headboard: 2015 mm
  • Internal distance between side rails: 1250 mm
  • Head section dimensions: 1105 x 770 mm
  • Fixed pelvis section dimensions: 1200 x 210 mm
  • Leg section dimensions: 1105 x 330 mm
  • Foot section dimensions: 1105 x 450 mm
  • Maximum inclination of movable back section: 70°
  • Maximum inclination of movable leg section: 25°
  • Maximum inclination of movable foot section: 20°
  • Maximum height of movable leg section from the bed base: 210 mm
  • Bed base weight: 55 kg
  • Weight of 1 pair of wooden side rails: 4.4 kg
  • Weight of patient lifting pole: 3.2 kg
  • Maximum bed inclination: ± 11°
  • Trendelenburg and Reverse-Trendelenburg system
  • Sliding aluminum side rails, height-adjustable and coated with a wood-effect film
  • Patient lifting pole
  • Handset
  • Anti-blackout backup battery



*Image purely indicative.

More Information
typology elettrico
Wheels Si
Length in millimetres 2,150.00
Depth in millimetres 1,320.00
Height in millimetres 790.00
strengths con sponde
