The folding carrying chair is an essential device for evacuation and rescue operations in environments characterized by limited maneuvering spaces. Designed to combine maneuverability and protection, the structure is made of chrome-plated steel, ensuring an optimal balance between operational lightness and structural robustness. Patient safety is a priority thanks to an integrated locking system that prevents accidental folding of the chair during transport, regardless of external stresses.
The comfort and stability of the person being transported are ensured by the presence of a fixed footrest and a resistant, easy-to-sanitize PVC cover. The 4-wheel configuration is designed for various surfaces: the two 200 mm rear wheels cushion vibrations on irregular ground, while the two 100 mm front wheels are swivel and equipped with a dual-action brake (rolling and axis) for secure stationary positioning.
Technical specifications
Structure material: Chrome-plated steel
Cover material: Resistant PVC
Safety system: Anti-accidental folding lock
Mechanism: Folding with quick-closing system
Front wheels: Ø 100 mm swivel with brake (rolling and axis)
Rear wheels: Ø 200 mm for vibration absorption
Maximum load capacity: 150 kg
Included accessories: Set of 2 safety belts and footrest
Dimensions open: Height 970 ± 10 mm, Length (handles closed) 810 ± 10 mm
Depth: 420 ± 10 mm
Dimensions folded: Height 800 ± 10 mm, Thickness 250 ± 10 mm
Weight: 10.8 kg ± 0.3
Classification: Class I Medical Device (Dir. 93/42/EEC)
CND Classification: V9099

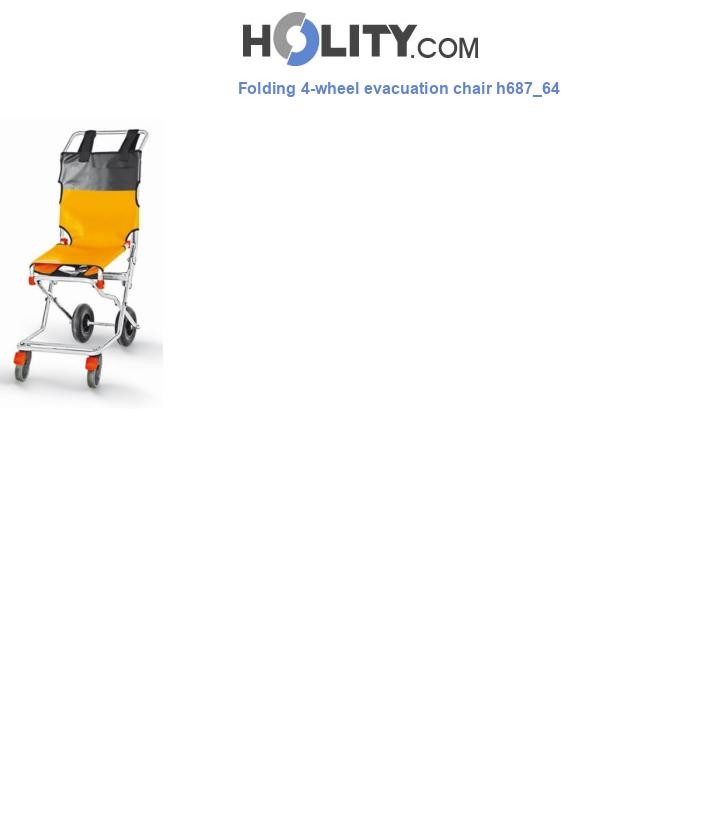

Image purely indicative
User benefits
Operational safety: The mechanical locking system prevents involuntary folding of the chair, eliminating the risk of accidental falls during rescue.
Maneuverability in narrow spaces: The compact dimensions and swivel front wheels allow for easy operation in narrow corridors or small elevators.
Patient comfort: The large diameter rear wheels (200 mm) drastically reduce vibrations transmitted to the patient during transit on uneven floors.
Guaranteed stability: The combination of footrest and safety belts ensures that the patient remains correctly positioned even during tilting maneuvers.
Storage efficiency: Thanks to the quick-closing system and a thickness of only 25 cm when folded, the chair takes up minimal space on board ambulances or rescue vehicles.
Scope of application
This carrying chair is indicated for the healthcare and emergency sector, including hospitals, assisted living facilities (RSA), and emergency response units. It is specifically designed for the evacuation of people with reduced mobility in complex architectural contexts, such as buildings without elevators, narrow stairs, or limited condominium passages, where standard stretchers cannot pass.
Why choose it
The chair represents the correct choice when a device is needed that balances a high load capacity (150 kg) with minimal footprint. Compared to standard evacuation chairs, the use of chrome-plated steel and differentiated wheels makes it suitable for intensive professional use, offering superior durability in scenarios where speed of deployment and stability are non-negotiable operational prerequisites.
FAQ
What is the main difference between the front and rear wheels of this chair?
The front wheels are 100 mm and swivel with a brake to allow rapid changes of direction in narrow spaces, while the 200 mm rear wheels are fixed and larger to cushion impacts and facilitate overcoming small obstacles or unevenness.
Which regulations does this medical device comply with?
The chair is classified as a Class I Medical Device in accordance with Directive 93/42/EEC and registered with CND classification V9099, ensuring compliance with European safety standards for rescue.
Are the safety belts integrated or do they need to be purchased separately?
The set of two safety belts is included in the standard equipment of the chair, ensuring immediate operability of the device for patient securing.
