Aluminum shelter with e-bike charging, solar panels, UV painted. Dimensions: 273 x 223 x 239.7 cm
To know shipping costs, add the product to your cart
Delivery Times 15-30 days
During August, holity will continue its online sales, but delivery times may be longer than those indicated.
Mon-Fri 9-13 / 14:30-18:30
The photovoltaic shelter for urban furniture is an advanced solution designed for sustainable mobility in public spaces, such as cycle paths, urban parking lots, rest areas, or green zones. Made of powder-coated anticorodal aluminum, it is designed to withstand atmospheric agents and exposure to UV rays.
The roof houses a structure dedicated to monocrystalline solar panels and a rear gutter for water drainage. The integrated rack allows for the charging of 6 e-bikes or electric scooters via 6 IP65 schuko sockets, protected and safe for outdoor use.
The entire system is supported by a 2.4 kWh photovoltaic accumulator, an MPPT charge controller, and an inverter for stable energy distribution. The product complies with international IEC and CEI standards for safety and quality, and is supplied with a declaration of suitability and conformity.
The shelter arrives closed and must be installed by qualified personnel on a solid and linear surface (e.g., concrete plinth). Opening and anchoring must be performed only after the base has consolidated, with the possible use of a truck with crane. The product is usable only after installation (not included). It does not require extraordinary maintenance.
Choose an efficient and sustainable solution for your urban furniture. Request a personalized quote now.
Supporting structure: Anticorodal aluminum with 200x100 mm tubes, 3 mm thickness
Roof reinforcement crossbeams: 80x80 mm tubes, 3 mm thickness
Drainage gutter: Rear for rainwater runoff
Upper cover: In sheet metal for panel housing
Painting: Powder-coated, resistant to weather and UV rays (matte RAL 7016)
Open dimensions: L.273 x D.223 x H.239.7 cm
Closed dimensions: L.273 x D.90.6 x H.226.7 cm
Weight: 220 kg
Electric charging: 6 IP65 8 A schuko sockets - 230 V – 50 Hz
Electrical panel: 3 magneto-thermal circuit breakers of 0.03 MA – 16 A
Cables used:
Sockets: single-core FS17 cable sect. 2.5 mm²
Panel connection: neoprene cable H07RNF3G4.00.B 450/750V -25/+60°C
Solar panels: 2 monocristalline modules of 435 Wp
Regulations: IEC 61215 – IEC 61730
Maximum power: 435 Wp
Voc: 38.4 V | Isc: 14.31 A
Vmp: 32.0 V | Imp: 13.60 A
Power tolerance: 0 ~ +5 W
Photovoltaic accumulator: 24 V – 100 Ah – 2.4 kWh nominal
Certifications: IEC 60900:2004, CEI EN 61008, Fire resistance classification UL790 (panels)
Permanent installation for urban spaces
Autonomous charging with renewable energy
Solid and weather-resistant structure
No extraordinary maintenance
Product compliant with international standards
Is the product ready for use upon delivery?
No, the shelter is supplied closed and must be installed on a solid and flat surface. Opening must be performed only after the anchoring has consolidated and by qualified personnel.
Is a connection to the power grid required?
No, the system works in total energy autonomy, thanks to the photovoltaic panels and the included storage system.
Are the charging sockets suitable for outdoor use?
Yes, the schuko sockets have an IP65 protection rating, so they are resistant to dust and water splashes.
How many bicycles or scooters can it charge?
It can charge up to 6 bikes/scooters.
Is maintenance required?
No extraordinary maintenance is required. During the winter months, it is recommended to cover it if not in use.
What certifications does the product have?
The product complies with IEC 60900:2004, CEI EN 61008, IEC 61215, IEC 61730 standards, and has a declaration of suitability and conformity.
Is DIY installation possible?
No, the intervention of qualified technicians is necessary. Opening may require the use of a truck with a crane (installation not included).
If you are considering the purchase of a photovoltaic shelter for your municipality, company, or public body, here is some useful advice for choosing the most suitable solution:
First of all, evaluate the space available for installation: this shelter has significant dimensions in both depth and height. It is essential that the surface is solid, flat, and prepared for anchoring, such as a concrete base. If it is not already present, it will be necessary to create a plinth following the manufacturer’s technical instructions.
Verify that your project requires an energy-autonomous structure: thanks to the solar panels and the accumulator, this shelter does not require a connection to the power grid and can be positioned anywhere, even in remote areas or those not served by infrastructure.
Finally, consider the intended use: if it is a high-traffic area or a cycle path, the presence of 6 IP65 protected schuko sockets and integrated racks makes it a functional, robust urban charging station ready to meet the needs of electric mobility in the city.
photovoltaic shelter for urban furniture, solar shelter for e-bike charging, urban shelter with solar panels, electric scooter charging shelter, powder-coated aluminum shelter, public shelter with IP54 sockets, sustainable shelter for smart cities

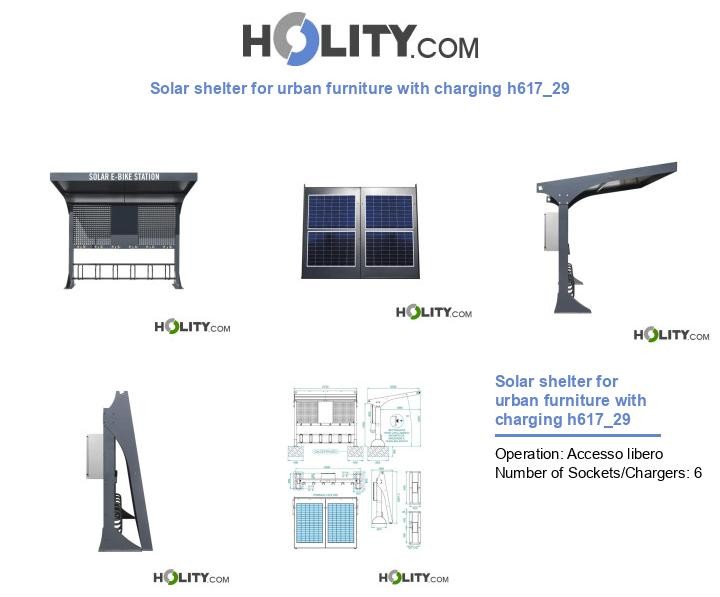

*Image purely indicative.
*Additional colors can be requested upon quotation.
*Upon receipt of goods, the customer must be provided with a forklift for unloading the shelter.
*Installation excluded
| Number of Sockets/Chargers | 6 |
|---|---|
| Length in millimetres | 2,730.00 |
| Height in millimetres | 2,397.00 |
| Operation | Accesso libero |
| Depth in millimetres | 2,230.00 |
| Strengths | Con pannelli solari |
