• Protection against theft during parking: The presence of the lockable charging box allows the user to store their personal power supply safely, eliminating the risk of unauthorized removal or tampering during the charging time.
• Electrical insulation against infiltration: The use of the IP67 electrical socket combined with the IP54 protective door guarantees the continuity of the 230 V energy supply even in the presence of rain or humidity, excluding short circuits induced by atmospheric agents.
• Permanent structural resistance outdoors: The combined cycle of hot-dip galvanizing and black powder coating shields the square steel tube from oxidative phenomena and rust, eliminating conservative maintenance interventions.
• Stable anchoring and anti-tipping: The pre-drilled base plates allow a rigid mechanical link to solid flooring via bolts, effectively countering the load stresses of the vehicle and uprooting attempts.
• Pedestrian space optimization: The calibrated width and height of 800 mm allow the single charging point to be inserted even in contexts with reduced square footage or narrow sidewalks, offering the service without obstructing transit.

This single rack with charging station finds its optimal application in the setting up of public urban areas, squares, city parks, railway stations, bike paths and intermodal exchange nodes. Thanks to the compact square tube design and the black galvanized finish, it is the ideal device to be placed in the private outdoor spaces of companies, executive offices, shopping centers, hotels, restaurants, condominium courtyards and university campuses, guaranteeing orderly parking and a protected 230 V power point for employees, customers and visitors who use electric bicycles.

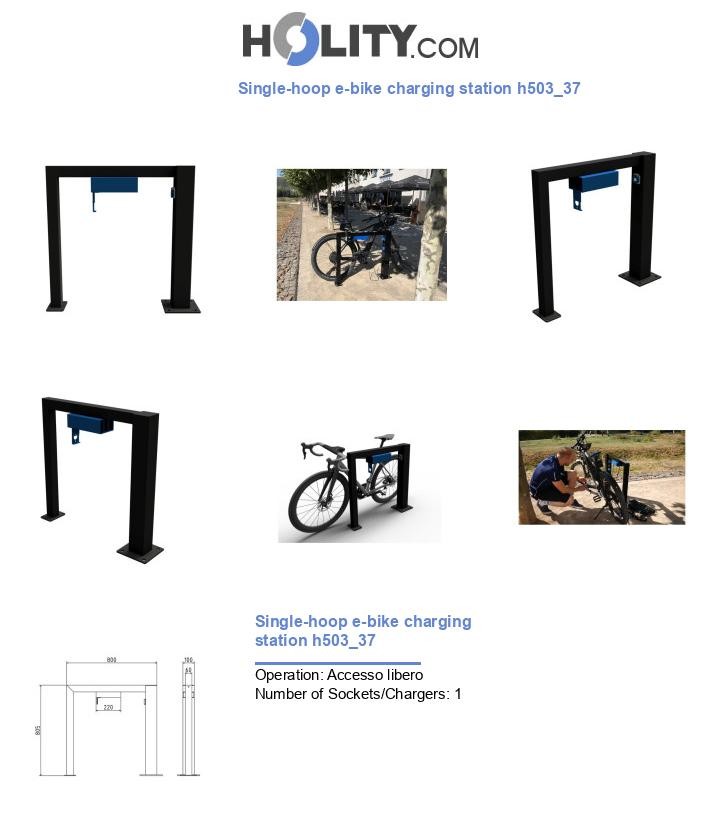

The h503_37 model is the correct choice when the mobility or outdoor furniture project requires a single charging point for e-bikes focused on the mechanical security of the user’s power supply via a lockable compartment. It proves preferable to open racks or charging posts without physical protection because the heavy 18 kg steel structure with tubes up to 100x100 mm guarantees superior stability against lateral thrusts and protects the system from damage. Choosing this station means implementing a durable infrastructure that is immediately ready for outdoor use, quickly installable thanks to the bolt-down plates and fully compliant with the provided dimensional specifications.

What is the difference in terms of security between this single model with a lockable box and a common exposed rack?

A common exposed rack only provides the mechanical link for the bicycle frame or wheel, forcing the user to leave their charger hanging from the vehicle or on the ground, exposing it to the risk of theft and rain. This station instead integrates a lockable charging box that shields the 230 V power plug inside a protected compartment, preventing access to ill-intentioned persons and preserving the electronic device from atmospheric agents.

What certifications and IP ratings cover the internal electrical socket of this charging station?

The electrical system is designed to operate outdoors through two levels of insulation documented in the technical specifications: the internal 230 V power socket is equipped with a protective cover with an IP54 rating to preserve the contacts from dust and standard splashes, while the overall architecture of the electrical socket is certified with an IP67 insulation rating, a parameter that guarantees watertightness against water infiltration and humidity in exposed outdoor contexts.

Can the 18 kg rack be installed directly on dirt ground or does it require specific flooring?

The structure necessarily requires a rigid and solid surface for installation. Having a weight of 18 kg and having to safely support the load of an electric bicycle while parked, the integrated base plates are designed for fixing via structural bolts. It is therefore essential to have a flat concrete, cement or asphalt floor that allows for drilling and tightening of the bolts, guaranteeing the immovability of the product.
