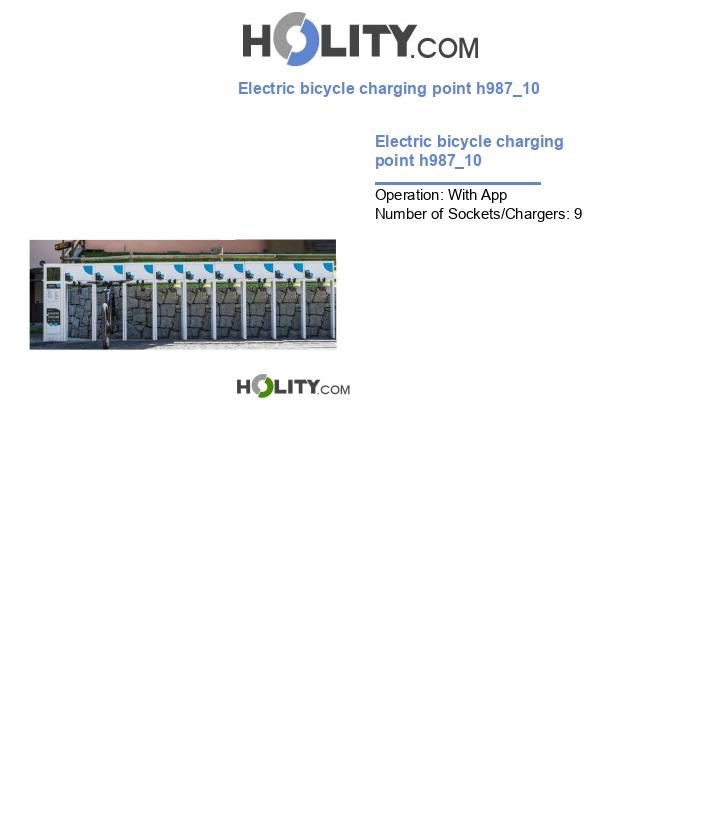

E-bike charging station consisting of a column and 9 modules. Featuring 1x Schuko 16 A / 1x USB 1.5 A / up to 2x optional e-bike charging plugins per individual module. Total power supply: 10 KW three-phase. Total dimensions: L 5800 x W 300 x H 1550 mm.
To know shipping costs, add the product to your cart
Delivery Times 6-7 days
During August, holity will continue its online sales, but delivery times may be longer than those indicated.
Mon-Fri 9-13 / 14:30-18:30
The H987_10 charging station is a complete and modular solution for the charging and maintenance of electric bicycles and scooters, designed for installation in public, semi-public, and corporate environments. Thanks to its expandable structure consisting of a main column and 8 additional modules, this station allows for multiple charging points and a safe and protected service for every type of user.
The column is remotely managed, meaning that the activation of the charging and the opening of the maintenance compartment occurs via a management system. Therefore, it is necessary to have a SIM card. The customer can provide the SIM independently, which will then be connected to the management system, or, alternatively, can request the SIM, upon quotation, during the purchase phase of the column. The purchase of the SIM will involve the payment of a monthly fee and the connection to the management system.
The central column integrates 4 charging points (2 interlocked Schuko sockets and 2 always-active USB ports), and is equipped with 2 metal supports for resting bikes or scooters during charging or maintenance. The supports can be used as saddle or handlebar supports and are equipped with an anti-theft system to ensure secure parking of the vehicle.
A distinctive element of the column is the integrated maintenance compartment, which contains 24 professional tools, securely locked to offer the possibility of performing small technical interventions independently, without the need for specialized personnel.
The 9 additional modules, connected to the column structure, significantly expand the station’s capacity. Each module includes 1x 16 A Schuko socket and 1x 1.5 A USB port, with the possibility of adding up to 2 optional plugins for proprietary connections. Furthermore, each module is equipped with a 27-liter storage compartment, accessible via electronic opening controlled by the column, ideal for storing chargers or other personal items protected from rain, humidity, and tampering.
The entire system is designed to operate according to the IEC EN 61851-1 Standard, in Mode 3, which represents the standard required in Italy for charging in public environments. Specifically, Mode 3 charging involves the direct connection of the electric vehicle to the AC supply network, using dedicated supply equipment. This ensures maximum safety and regulatory compliance, with interlocked sockets and magnetothermic protection. System management occurs via SIM card connection (not included, available on request) and user interaction is facilitated by authentication with a smartphone or RFID system.
Enhance your urban or corporate space with a complete and certified station. Purchase the H987_10 e-bike charging station or request a quote for the SIM supply and for customized configurations.
Technical features:
Total dimensions: L 5800 x W 300 x H 1550 mm
Composition: 1 column and 9 modules
Operation: via SIM (SIM not included in the supply) and management system. The customer can provide the SIM independently, which will then be connected to the management system, or, alternatively, can request the SIM, upon quotation, during the purchase of the column. The purchase of the SIM will involve the payment of a monthly fee and the connection to the management system
Total power supply: 10 KW three-phase
Column dimensions: 400 x 300 x 1550 mm
Column weight: 85 kg
Electrical parts protection: IP55
Mechanical resistance: IK08
Operating temperature: from -20°C to +80°C (with optional plugins from -20°C to +60°C)
Operating relative humidity: 5% - 95%
Body: Painted galvanized iron
Finish: RAL 9003 powder coating
Integrated protection: RESTART RD 4-pole, 25 A Type A pure RCD, Idn = 0.03 A, compliant with EN 50022
Operating indication: RGB LED
Auxiliary power supply: 12V and 5V
Nominal voltage: 230 V single-phase / 400 V three-phase
Max current per socket: 6 A
Max output power: 1 kW per socket
Connection: GPRS / GSM / WIFI / ETHERNET (optional) / BLUETOOTH (optional) / LORA (optional)
Data Bus: RS232
Protocol: OCPP 1.6 JSON, OCPP 2.0.1
Payment system: Smartphone, RFID system, NFC
Authentication: Smartphone, RFID, NFC
Connector type: Interlocked Schuko socket, universal USB, optional plugins
Single module dimensions: 600 x 300 x 315 mm
Single module storage compartment dimensions: 590 x 145 x 315 mm
Module weight: 40 kg
Electrical parts protection: IP55 components
Electronic operating temperature: From -20°C to +80°C, with optional plugins: from -20°C to +60°C
Relative humidity: From 5% to 95%
Body: Painted galvanized iron
Finish: RAL 9003 powder coating
Integrated protections: 6A Magnetothermic
Connector type: 1x Schuko 16 A, 1x USB 1.5 A, up to 2x optional plugins for e-bike charging
Max output power: 1 KW per socket
Nominal voltage: 230 V
Max charging current per socket: 6A
Payment system: Smartphone, RFID system
Authentication: Smartphone, RFID system
Connection: Via Zeus One
Data Bus: RS232
Communication protocol: From OCPP 1.6 JSON to OCPP 2.0.1
Optional:
User benefits:
FAQ:
Is it possible to use this station in a public area open to traffic?
Yes, the H987_10 station complies with the IEC EN 61851-1 standard and uses Mode 3, as required by Italian regulations for public environments.
How many vehicles can I charge simultaneously?
With the column and the 9 modules, you can charge multiple vehicles at the same time.
Is the compartment in the modules safe?
Yes, each module has a 27-liter compartment, protected from the elements and accessible only via electronic command from the column.
Is a SIM required for operation?
Yes, the system only works with a SIM card (not included), which can be purchased separately via quotation.
How does authentication for use occur?
Via smartphone, RFID, or NFC, depending on the system configuration.
Mini buying guide:
If you want to install an electric bicycle charging station in an environment open to the public or with a high frequency of use, it is fundamental that the system operates in Mode 3, as required by the IEC EN 61851-1 standard.
The presence of additional modules allows for increased capacity and offers a secure storage service for personal items.
Always verify compatibility with OCPP protocols, the availability of remote connection, and the presence of smart authentication and payment devices.
The H987_10 station is ideal for municipalities, companies, campuses, hotels, and all entities that want to offer a complete, safe, and compliant infrastructure.
Public electric bike charging station, e-bike column with storage modules, Mode 3 electric bike charging, e-bike charging and maintenance column, secure electric bike charging modules, multifunction station for electric scooters
*Image purely indicative.
*For the operation of the column, it is NECESSARY to have a SIM card (not included in the supply and available for purchase upon quotation).
*The customer can choose whether to obtain a SIM independently, which will then be connected to the management system (upon quotation and with the payment of a monthly fee), or request the SIM upon quotation, directly during the purchase of the column. In both cases, the activation of the SIM and the connection to the management system involve the payment of a monthly fee, defined upon quotation.
*Upon quotation, it is possible to request customization with a logo.
| Number of Sockets/Chargers | 9 |
|---|---|
| Length in millimetres | 5,800.00 |
| Height in millimetres | 1,550.00 |
| Operation | With App |
| Depth in millimetres | 300.00 |
| Strengths | Con attrezzi di manutenzione, Con kit gonfiaggio |
