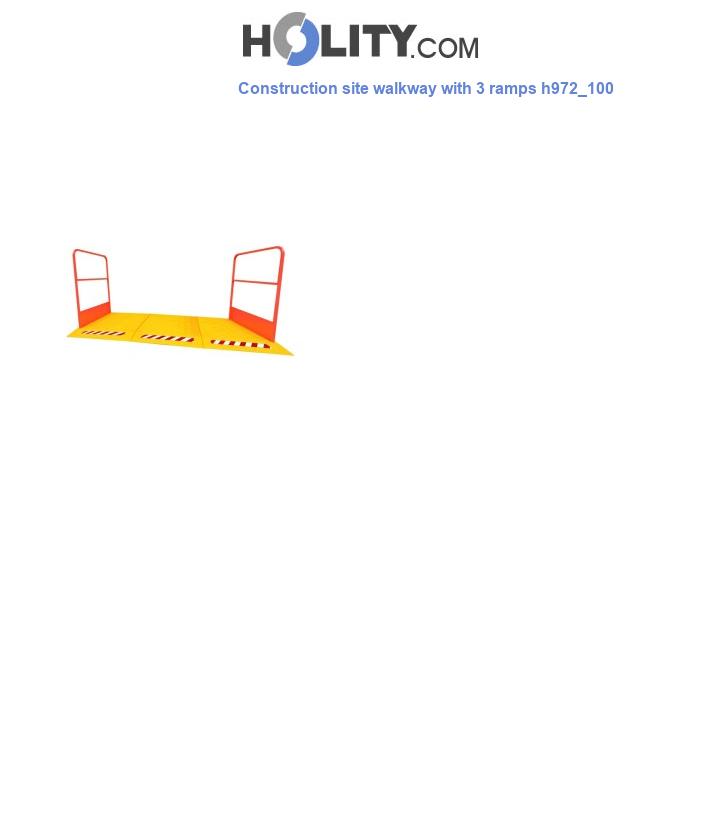

Construction site walkway in HDPE and steel (140x240x100 cm). 1000 kg capacity, three integrated ramps and high visibility for safe transit over excavations.
To know shipping costs, add the product to your cart
The h972_100 construction site walkway represents a professional solution for safely crossing excavations, channels and uneven surfaces in complex operational contexts. Designed to facilitate the transit of operators and equipment, this structure responds to the logistical challenges of high-traffic road and construction sites. The integration of HDPE (high-density polyethylene) and structural steel reinforcements ensures high mechanical stability and superior resistance to wear and weathering.
Technical features
Main material: HDPE (high-density polyethylene)
Secondary material: reinforcement steel
Color: high-visibility yellow/orange
Total dimensions: L 140 x W 240 x H 100 cm
Clear passage width: 2200 mm
Ramp configuration: 3 integrated ramps (two lateral, one frontal)
Protection systems: fixed guardrails with a height of 1 meter
Maximum load capacity: 1000 kg
Total weight: 66.15 kg
Image for illustrative purposes only
User benefits
Operational safety: the high-visibility yellow/orange coloring drastically reduces the risk of accidental collisions in low-light conditions.
Structural resistance: the combination of HDPE and steel allows for a capacity of 1000 kg, ensuring safe passage not only for pedestrians but also for carts and heavy equipment.
Access versatility: the configuration with 3 integrated ramps facilitates multi-directional access, optimizing movement flows within the work area.
Fall protection: the 1-meter high fixed guardrails ensure a continuous and stable physical barrier to prevent accidental falls into excavations.
Environmental durability: the use of high-density polyethylene prevents corrosion and premature deterioration due to prolonged exposure to rain, mud and UV rays.
Field of application
The walkway is designed for use in construction and road sites where it is necessary to cross open excavations or trenches for cable laying. It also finds ideal application in industrial environments during extraordinary maintenance operations and in urban redevelopment areas to ensure the continuity of pedestrian paths in total safety.
Why choose it
This walkway is the correct choice when a crossing system is required that combines logistical lightness and structural robustness. Unlike improvised wood or heavy metal solutions, the h972_100 offers a certified capacity of 1000 kg with a low self-weight, facilitating manual positioning without sacrificing the stability guaranteed by the steel reinforcements.
FAQ
What is the main difference compared to all-plastic walkways?
The presence of internal steel reinforcements allows this model to withstand loads up to 1000 kg, ensuring superior structural rigidity that prevents dangerous bending during the transit of heavy equipment.
Does the walkway comply with standard regulations for site protection?
Yes, the structure includes fixed guardrails 1 meter high, compliant with the fall protection requirements necessary for the safe crossing of excavations and level differences.
Is special ground fixing required?
Stability is guaranteed by its own weight of over 66 kg and the design of the ramps, but it is always necessary to ensure that the support surface is level and solid to maintain the declared load capacity.
