The professional parcel trolley with mesh side panel is a solution designed for the efficiency of manual load handling in logistical and industrial contexts. The structure integrates a protective side panel in tube and electro-welded mesh that acts as a containment barrier, preventing the accidental fall of goods and facilitating the management of stacked or unstable parcels. Thanks to the reinforced platform in high-thickness sheet metal and the sliding system on bearings, the trolley ensures operational stability and reduction of physical effort for the operator.
Side structure: Steel tubular with metal mesh infill
Mesh size: 50x50x4 mm
Wheel system: 140 mm diameter with roller bearings (2 fixed and 2 swivel)
Maximum capacity: 300 kg
Finish: Epoxy powder coating in RAL 7038 Grey
External dimensions: 1240 mm (L) x 660 mm (D) x 960 mm (H)
Platform useful dimensions: 1100 mm (L) x 650 mm (W)
Handle: Ergonomic handle integrated into the side panel structure

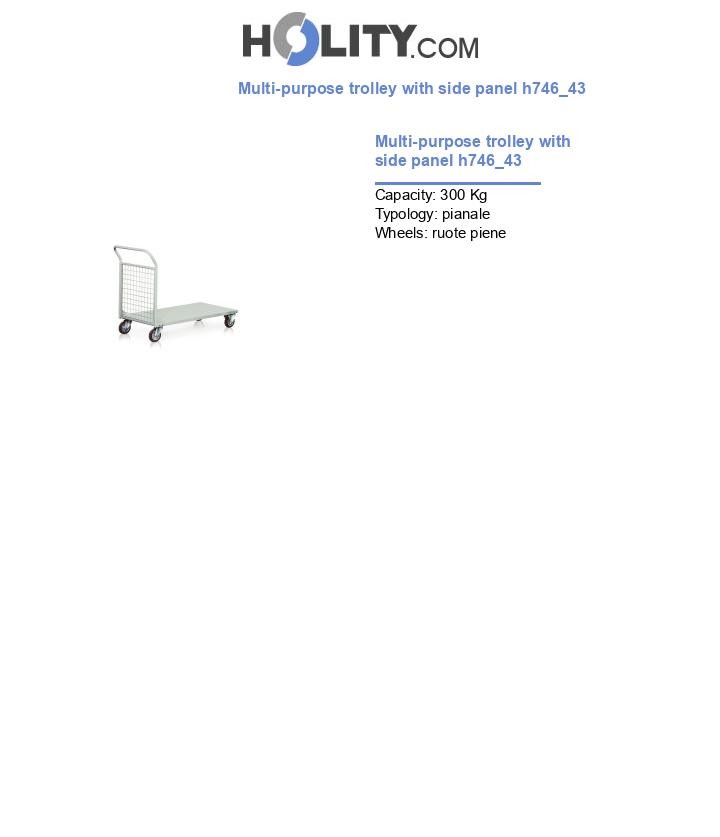

Image for illustrative purposes only
User benefits
Load safety: The metal mesh side panel prevents parcels from slipping, drastically reducing the risk of damage to goods during transport.
High stability: The 20/10 sheet metal platform resists mechanical bending, guaranteeing a non-deformable support base even at full load.
Smooth rolling: The adoption of roller bearings in the 140 mm wheels reduces initial friction, facilitating movement on different types of industrial flooring.
Optimal maneuverability: The configuration with two swivel wheels allows for easy direction changes even in narrow aisles or tight spaces.
Wear resistance: The RAL 7038 powder coating offers long-lasting protection against corrosion and scratches resulting from intensive use.
Field of application
This trolley is specifically indicated for logistics depots, storage warehouses and sorting centers where it is necessary to move medium-sized parcels. It is also effectively used in mechanical workshops and production departments for the transfer of semi-finished products or bulk components that require lateral support during transit between workstations.
Why choose it
It is the correct choice when the transported goods have precarious stability or when the movement path includes changes in slope or floors that are not perfectly smooth. Compared to an open platform trolley, the mesh side panel offers a guarantee of extra protection without excessively weighting down the structure, maintaining an excellent ratio between self-weight and payload capacity.
FAQ
What is the advantage of a mesh side panel compared to a closed one?
The mesh side panel with 50x50 mm mesh ensures maximum visibility of the load and allows for easy attachment of any anchoring straps, while keeping the trolley light and easy to handle.
Is the trolley suitable for concentrated or only distributed loads?
The reinforced 20/10 sheet metal platform is designed to support loads up to 300 kg, however to preserve the integrity of the roller bearings it is always advisable to distribute the weight evenly over the surface.
Are there any reference standards for the indicated capacity?
The product is manufactured following construction standards for manual handling equipment, guaranteeing the nominal capacity of 300 kg under compliant use conditions on flat and regular surfaces.
