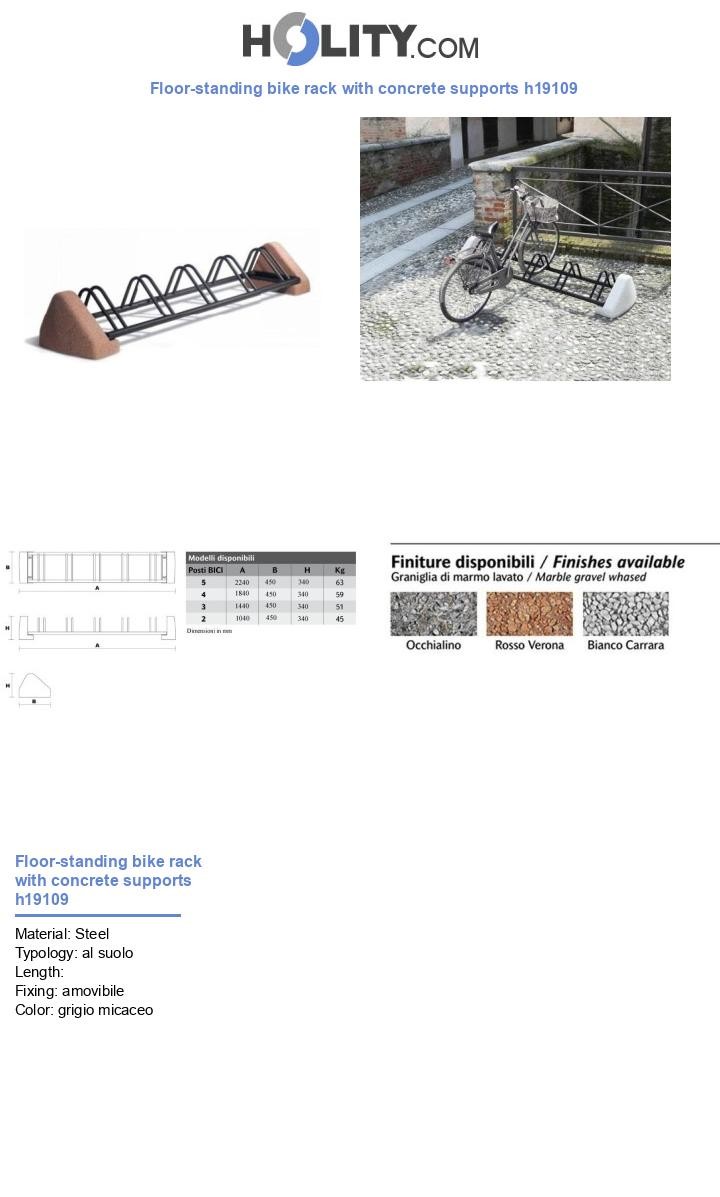

The floor-standing bike rack with concrete supports h19109 is a self-standing solution designed for functional urban furniture. Characterized by a removable structure that does not require anchoring to the ground, this model responds to the operational needs of schools, public parks and city centers that require ready-to-use and vandal-resistant bicycle parking systems. The combination of the two horizontal steel side members and the heavy side supports in concrete conglomerate guarantees excellent stability, solving the problem of accidental tipping or unauthorized displacement of the rack.
Technical features
Rack material: Galvanized and powder-coated steel
Metal finish: Micaceous grey
Lateral supports: High-resistance concrete conglomerate (R42.5) with internal steel reinforcement and marble chips
Available configurations: 2, 3, 4 or 5 bike spaces
Total length: 1040 mm (2 spaces), 1440 mm (3 spaces), 1840 mm (4 spaces), 2240 mm (5 spaces)
Depth: 450 mm
Height: 340 mm
Structure tube diameter: 42 mm
Wheel holder bracket diameter: 20 mm
Bracket dimensions: 420 x 200 mm (base x height)
Overall weight: 45 kg (2 spaces), 51 kg (3 spaces), 59 kg (4 spaces), 63 kg (5 spaces)
Installation: Removable, self-standing without ground fixing
Supply: Product delivered fully assembled
Options
Concrete support colors: Carrara White, Occhialino, Verona Red
* Image purely indicative
User benefits
Immediate stability: The use of high-mass concrete supports allows for secure placement without drilling into the road surface.
Weather resistance: The galvanizing treatment combined with powder coating prevents corrosion and oxidation over the long term.
Mechanical protection: The triangular wheel-holder brackets ensure bicycle support while avoiding twisting of the wheel spokes.
Positioning versatility: The removable nature allows for the reconfiguration of urban spaces or moving the rack according to seasonal needs.
Reduced maintenance: The chosen materials (R42.5 concrete and galvanized steel) are designed to resist mechanical and climatic wear without constant intervention.
Ready to use: The delivery of the already assembled product eliminates installation costs and assembly times on site.
Field of application
The h19109 bike rack finds its ideal placement in public contexts and high-traffic areas where a robust but not necessarily fixed rack is required. It is particularly suitable for school courtyards, shopping center entrances and city parks, contexts where the paving cannot be drilled (such as in historic centers or on fine stone pavements). Its neutral aesthetics and material resistance also make it perfect for apartment buildings and company parking lots, where the primary need is the order of parked vehicles and the durability of the support.
Why Choose It
Choosing this model is the right decision when a self-supporting rack is needed, capable of staying in position due to its own specific weight, eliminating installation and labor costs for anchoring. It is the ideal product if the main requirement is structural solidity combined with movement flexibility. Compared to lightweight models made entirely of metal, the version with concrete supports offers a greater deterrence against displacement and superior stability even with heavy bicycles or in adverse weather conditions such as strong gusts of wind.
FAQ
What is the difference between this model and an all-steel bike rack?
Unlike all-metal models that strictly require ground anchoring to avoid tipping over, this bike rack uses the weight of the concrete conglomerate supports to ensure immediate static stability on any flat surface.
Does the product comply with regulations for installation in public areas?
Yes, the bike rack is made with certified materials such as high-resistance R42.5 concrete and steel subjected to galvanizing processes that meet the quality standards required for urban furniture and safety in public spaces.
Is it possible to fix the rack to the ground if necessary?
The design is specifically studied to be removable and self-standing. However, the high mass of the concrete makes mechanical anchoring superfluous in most standard operational applications.
More Information
Material
Steel
strengths
amovibili con base in cemento, di design , mono-facciali
