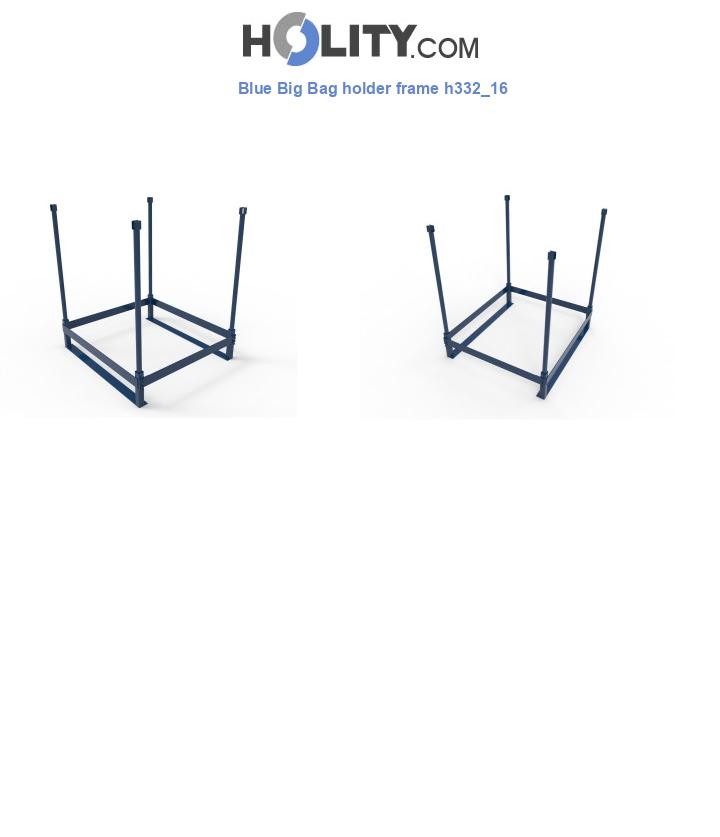

The Big Bag support frame h332_16 represents an economical and efficient solution for the static support of 1 cubic meter bags. Designed for industrial, agricultural, and logistical contexts, this support facilitates manual or mechanical filling operations, offering an essential structure that optimizes workspaces. The frame is supplied disassembled to reduce transport bulk, complete with bolts and instructions for quick and intuitive assembly.
The structure is entirely produced in Italy and guarantees high quality standards, supported by a 3-year warranty on the structural part. To ensure maximum stability and reach the nominal capacity, it is necessary to position a standard pallet (not included) at the base of the frame. It is important to note that the structure is designed exclusively for static use: once the Big Bag is filled, extraction takes place by manual/mechanical lifting of the bag or by removing a section of the frame to allow the pallet to be slid out.
Technical characteristics
Use: static support for 1 m³ Big Bags
Material: painted steel (blue color)
Maximum capacity: 1000 kg (with the help of a pallet at the base)
External dimensions: 1200 mm (W) x 1100 mm (D) x 1360 mm (H)
Empty weight: 45 kg
Assembly: supplied in a kit to be assembled (bolts included)
Handling: not intended with load inserted
Support base: compatible with standard pallets
Production: 100% Made in Italy
Warranty: 3 years on the structure
Image for illustrative purposes only
User benefits
Operational efficiency: the essential design allows for quick assembly and immediate use in temporary filling stations.
High capacity: the integration with a pallet at the base allows for supporting loads up to 1000 kg in total safety.
Certified reliability: the Made in Italy production and the three-year warranty ensure a long life of the structural component.
Logistics optimization: shipping in a disassembled kit reduces transport costs and facilitates frame storage when not in use.
Extraction versatility: the structure allows for the removal of the full bag both vertically and laterally through partial disassembly.
Field of application
The h332_16 frame is suitable for agricultural storage centers, aggregates treatment plants and logistical warehouses where Big Bag filling in fixed positions is required. It finds ideal application in the management of industrial waste, seeds, feed or granular materials that need to be bagged before shipping on pallets.
Why choose it
It is the right choice when the primary need is cost containment without sacrificing structural stability. Unlike wheeled or heavy structures, the h332_16 model is perfect for those who already have pallets and need a static filling station simple to maintain and easy to move manually (only when empty) between different departments.
FAQ
Is it possible to move the frame with a forklift while the bag is full?
No, the h332_16 frame is designed exclusively for static use. The movement of the full bag must take place separately, by lifting the Big Bag or extracting the underlying pallet after removing a section of the structure.
What are the requirements to guarantee the 1000 kg capacity?
To correctly support the maximum load, it is essential to insert a standard pallet at the base of the frame, which serves as a structural support surface for the bottom of the Big Bag.
What certifications or warranties accompany the product?
The product is entirely made in Italy at specialized plants and is covered by a 3-year warranty on the metal structure, confirming the construction quality.
