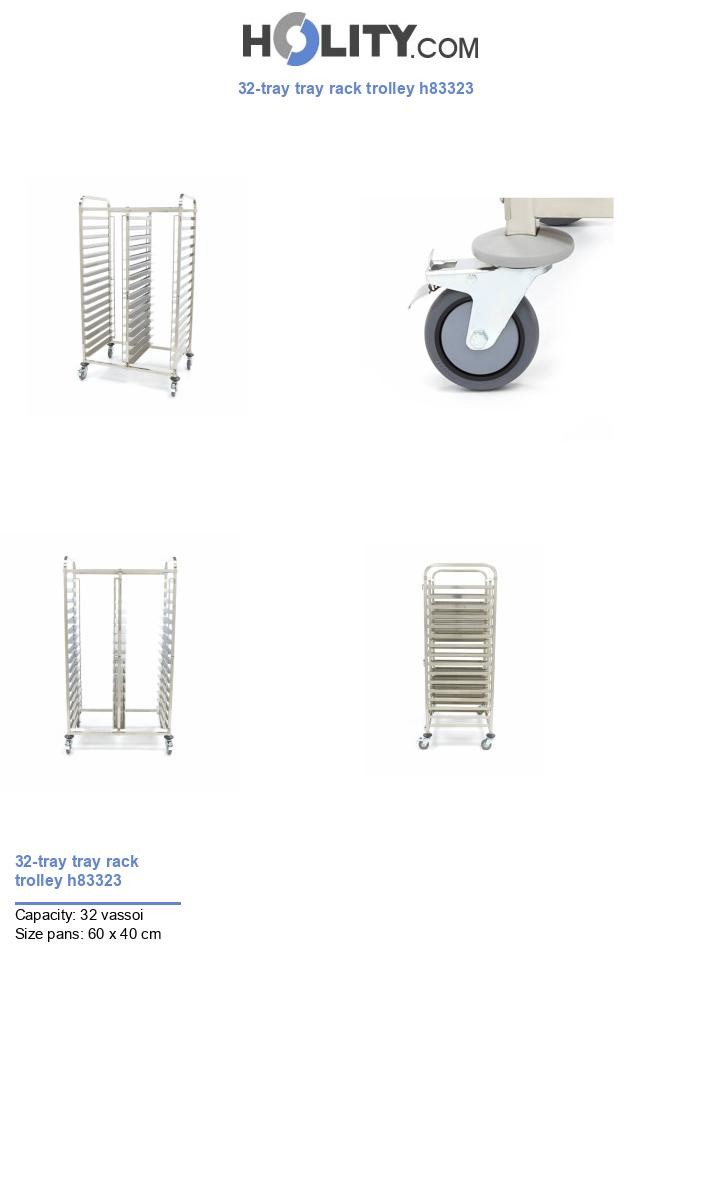

The professional H83323 tray trolley is the ultimate logistical solution for bakeries, pastry laboratories and cooking centers handling industrial production volumes. Made entirely of stainless steel, this double-column model allows for the simultaneous transport of up to 32 trays or racks of 60 x 40 cm (16 levels per column). The structure is designed to withstand heavy loads, with welded and polished joints that guarantee deep sanitization in line with HACCP protocols. Thanks to the side handle and oversized wheels, the handling of significant loads is smooth and safe, while the rear support on each guide prevents accidental slipping of the trays during transport.
Technical features
Material: High quality stainless steel (tubes Ø 2.5 cm)
Configuration: Double section (32 total levels)
Compatibility: 60 x 40 cm trays and racks
Total dimensions: L. 98 x D. 68 x H. 173.5 cm
Capacity: 15 kg per single shelf (480 kg total distributed)
Distance between shelves: 85 mm (8.5 cm pitch)
Handling: 4 pivoting wheels (2 with brake) and side handle
Safety: Rear anti-slip support and corner bumpers
Assembly: Supplied disassembled (quick assembly in 10 minutes)
Net weight: 32 kg
* Trays and racks not included.
User benefits
Maximum Logistical Efficiency: Allows moving an entire production batch in a single trip, reducing working times and optimizing flows between oven and warehouse.
Structural Solidity: Reinforced square legs and high-thickness stainless steel guarantee a decennial durability even under intensive use in Ho.Re.Ca. environments.
Superior Hygiene: Smooth surfaces and polished welds prevent the accumulation of dirt and bacteria, facilitating quick cleaning in compliance with hygiene standards.
Protected Maneuverability: Despite its generous dimensions, the integrated handle and bumpers allow for safe transit while protecting laboratory furniture and walls.
Intuitive Assembly: The simplified assembly system allows the trolley to be operational in a few minutes with minimal tools.
Field of application
This trolley is the ideal tool for large bakeries, industrial pastry shops, hotels with catering service and self-service canteens. Thanks to the 8.5 cm spacing, it is perfect for natural leavening, cooling freshly baked products or organized storage in large cold rooms. Its robustness also makes it suitable for managing dirty trays in high-traffic clearing areas.
Why Choose It
Choosing the H83323 model means investing in the maximum storage capacity on wheels available for the 60x40 standard. It is the correct choice for those who want to eliminate multiple trips and centralize tray movement. The presence of safety systems such as parking brakes and rear stops makes it reliable equipment that protects product integrity and staff safety in the heart of production.
FAQ
Can I load very heavy trays?
Each individual shelf supports up to 15 kg, allowing the trolley to handle significant total loads (such as doughs or gastronomy bases) without deformation of the guides.
Are the wheels suitable for uneven floors?
The 4 pivoting wheels are designed to ensure smoothness on all industrial floors (resin, tiles, concrete), while the two brakes ensure total stability during loading.
What are the advantages of the side handle?
The integrated handle allows for superior directional control during pushing, essential for a trolley of this size, reducing the operator’s physical effort.
