0 – 1400 W cycle ergometer with RPM-independent brake, ideal for rehabilitation. Dimensions: L 110 x W 53 x H 130 cm.
To know shipping costs, add the product to your cart
Delivery Times 15-20 days
Mon-Fri 9-13 / 14:30-18:30

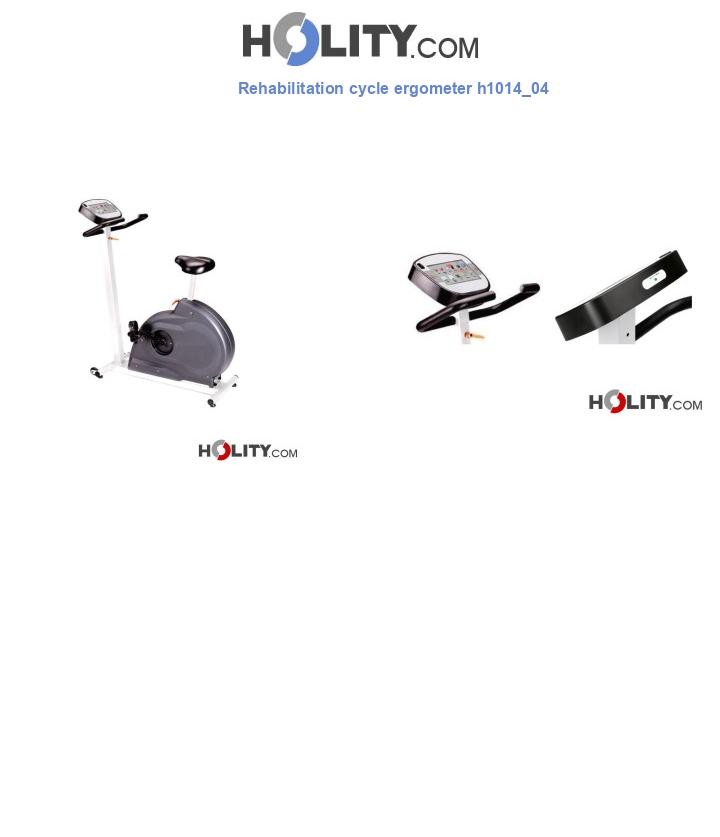

The H1014_04 cycle ergometer is a high-performance medical device, designed for cardiological, respiratory, and neuromotor rehabilitation in hospital and outpatient settings. Designed for patients with complex or progressive rehabilitative needs, it allows for controlled load work with high precision and safety, even in high-intensity programs.
The technological heart of the cycle ergometer is the electrodynamic brake independent of the pedaling speed, which allows for electronic adjustment of the effort from 0 to 1400 Watts, with increments of only 1 Watt. This allows the load to be perfectly adapted to the clinical conditions of each patient, favoring personalized and progressive protocols.
The 10.1” resistive touchscreen monitor, managed by an iMX6 DL PC with Linux operating system, offers a clear, intuitive, and stable interface, ideal for use by healthcare professionals. The LED scale for visualizing pedaling (RPM), positioned on the side opposite the console, also allows medical staff to follow the activity in real time.
The structure is designed for maximum comfort and accessibility, with easy entry, saddle adjustable from 120 to 210 cm, 360° adjustable handlebar, and 180° swiveling console, making the device suitable for patients of all statures and physical conditions, up to a maximum of 180 kg. The rear wheels make it simple to move within the healthcare facility.
Certified according to the CE 93/42/EEC directive, it comes equipped with everything needed for immediate use in clinical and rehabilitative contexts.
Choose the H1014_04 cycle ergometer for precise, safe, and personalized rehabilitation. Contact us for custom configurations or supplies for rehabilitation centers and hospitals.
Technical features:
Dimensions: L 110 x W 53 x H 130 cm
Weight: 60 kg
Monitor: 10.1” resistive touchscreen
Integrated PC: iMX6 DL, 1 GB RAM, 8 GB Micro SD, Linux operating system
Resistance: 0–1400 Watt, 1 Watt increment
Brake type: Electrodynamic independent of the number of revolutions
Drive system: Chain
Pedaling speed: 3–130 RPM
RPM display: LED scale (on the side opposite the console)
Power supply: 100–240V~ 50–60 Hz, 1.6–0.7A
Adjustable saddle: For statures from 120 to 210 cm
Maximum user weight: 180 kg
Certification: CE 93/42/EEC
Internal transport wheels
Power cable
RS232 cable
180° swiveling console
360° adjustable handlebar
User benefits:
FAQ:
Is this cycle ergometer suitable for post-infarction or surgery rehabilitation?
Yes, the ability to adjust the effort starting from 0 Watts with minimum increments makes it perfect for cardiac or post-operative patients.
Can I also use it in high-intensity protocols?
Certainly, thanks to the resistance up to 1400 Watts, it is also suitable for advanced sports and rehabilitation programs.
Is it compatible with external monitoring software?
Yes, it is equipped with an RS232 port, useful for integration with other devices or management software.
Does it require a power supply?
Yes, it is powered via 100–240V~ 50–60 Hz mains, power supply included.
Is it difficult to move?
No, it is equipped with integrated wheels, designed to facilitate transport within the facility.
Short buying guide:
When selecting a rehabilitation cycle ergometer, it is essential that the device offers precision in effort adjustment, accessibility for every type of patient, and ease of use for the healthcare operator.
The H1014_04 model is an excellent choice for rehabilitation centers, nursing homes, hospitals, and outpatient clinics, thanks to the maximum power of 1400 Watts, cadence-independent brake, and easy access.
The integrated system allows for complete management without the need for external software, but it is compatible with IT solutions for professional monitoring.
Hospital rehabilitation cycle ergometer, ergometer with RPM-independent brake, CE-certified 1400 Watt cycle ergometer, cardiological rehabilitation equipment, touchscreen medical rehabilitation device.
