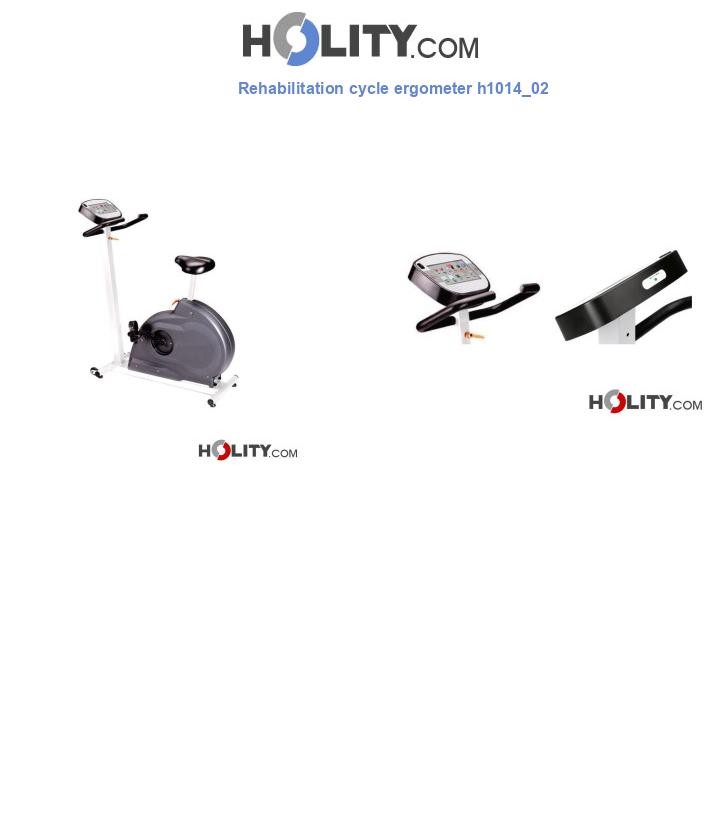

Cycle ergometer with electrodynamic brake and easy access. Dimensions: L 110 x D 53 x H 130 cm.
To know shipping costs, add the product to your cart
Delivery Times 15-20 days
Mon-Fri 9-13 / 14:30-18:30
The H1014_02 cycle ergometer is a professional medical device designed for cardiological, motor, and respiratory rehabilitation in hospital, outpatient, and clinical settings. Its structural and functional features make it ideal for a gradual and controlled assessment of effort, both for patients in the post-acute phase and in the preventive field.
Equipped with a 10.1” resistive touchscreen monitor, the cycle ergometer is managed by an iMX6 DL PC with Linux operating system, ensuring an intuitive and stable interface. The load system is entrusted to an electrodynamic brake independent of the pedaling frequency, with 1-Watt increments up to 700 constant Watts, allowing extremely precise control of the applied effort.
The chain drive and pedaling speed from 3 to 130 RPM allow for simulating a wide range of effort conditions, while the integrated LED scale displays the revolutions (RPM) on the opposite side of the display, facilitating visual monitoring also by healthcare personnel.
Access is facilitated by an open and stable structure, ideal for patients with reduced mobility. The adjustable saddle accommodates users with heights from 120 to 210 cm, supporting a maximum weight of 180 kg. The 360° adjustable handlebar and the 180° swivel console offer total flexibility to adapt to every therapeutic need.
The cycle ergometer complies with the CE 93/42/EEC directive, intended for professional medical use, and equipped with all components for immediate and safe use.
Choose the H1014_02 cycle ergometer now for your rehabilitation facility. Reliable, precise, and versatile. Contact us for multiple orders or for a personalized quote.
Technical features:
Dimensions: L 110 x D 53 x H 130 cm
Device weight: 60 kg
Monitor: 10.1” resistive touchscreen
Operating system: Linux (PC iMX6 DL – 1 GB RAM, Micro SD 8 GB)
Resistance: 0 – 700 constant Watts, 1-Watt increment
Brake type: Electrodynamic, independent of RPM
Drive: Chain
Pedaling speed range: 3 – 130 RPM
RPM indication: Colored LEDs on the opposite side of the display
Power supply: 100–240V~ 50–60 Hz, 1.6–0.7A
Adjustable saddle: For users from 120 to 210 cm
Maximum user weight: 180 kg
Certification: CE 93/42/EEC (Medical Device)
Integrated transport wheels
Power cable
RS232 cable
180° swivel console
360° adjustable handlebar
User benefits:
FAQ:
Is this cycle ergometer suitable for cardiac rehabilitation?
Yes, it is specifically designed for rehabilitation protocols in clinical and hospital settings.
Is it compatible with heart monitoring devices?
The H1014_02 model is equipped with an RS232 port, useful for integration with external instruments, but does not include a BLE heart rate strap.
Is external software required to control it?
No, it is equipped with an integrated PC with a simple and functional touchscreen interface.
Is it easy to use for patients with reduced mobility?
Yes, thanks to the easy-access design and adjustable saddle, it is also suitable for elderly patients or those with motor disabilities.
What is the maximum weight supported?
It can support users up to 180 kg.
Mini buying guide:
A rehabilitation cycle ergometer must guarantee effort precision, accessibility, and flexibility of use.
The H1014_02 model fully meets these requirements thanks to an electrodynamic brake independent of RPM, a solid structure with easy access, and digital management of rehabilitation protocols via touchscreen.
The CE 93/42/EEC certification makes it suitable for use as a medical device in public and private health facilities. It is particularly indicated for cardiology, physiotherapy, geriatrics, and neuromotor rehabilitation.
Hospital rehabilitation cycle ergometer, cycle ergometer with easy access, ergometer with independent electrodynamic brake, medical device for cardio rehabilitation, CE certified touchscreen cycle ergometer.
