Cycle ergometer with electrodynamic brake and power up to 1400 Watts. Dimensions: W 110 x D 53 x H 130 cm.
To know shipping costs, add the product to your cart
Delivery Times 15-20 days
Mon-Fri 9-13 / 14:30-18:30

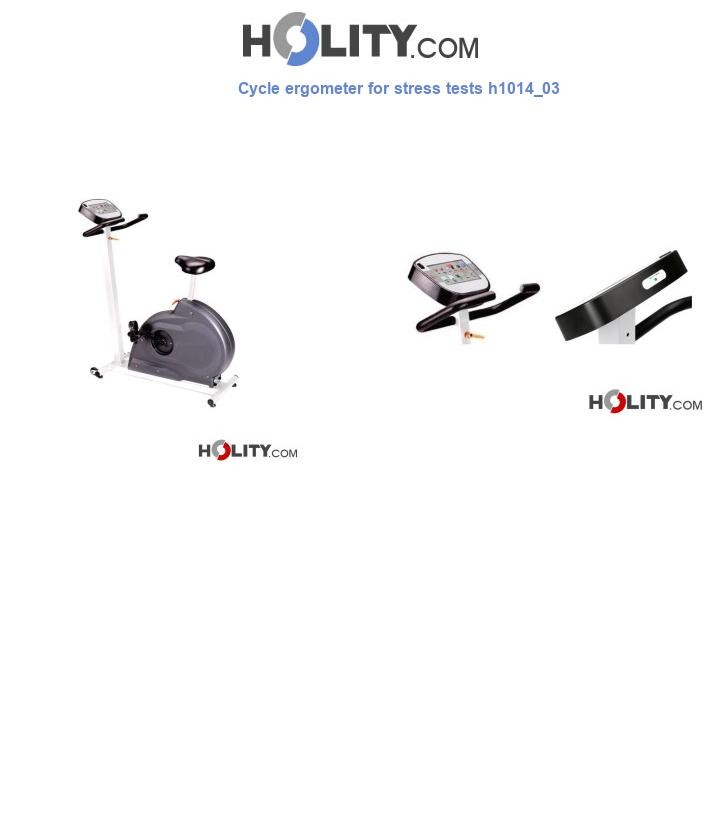

The h1014_03 cycle ergometer is a professional device for performing advanced stress tests in hospital and clinical settings, designed to provide high performance, precise effort control, and maximum reliability. It is ideal for cardiovascular tests, functional evaluations, and intensive stress tests, even on high-performance physical patients.
Equipped with a 10.1” resistive touchscreen monitor, the device is managed by an integrated iMX6 DL (Linux) PC, which allows direct resistance control, visualization of parameters, and customization of work protocols. The technological heart of the cycle ergometer is its computer-controlled electrodynamic brake, with adjustable torque in speed-dependent or independent mode, supported by a load cell feedback system to ensure precision and repeatability of workloads.
With a resistance up to 1400 Watts and 1 Watt increments, it offers an extremely wide work range, suitable for both patients in critical conditions and athletes undergoing maximal evaluations.
The adjustable saddle for heights from 120 to 210 cm and the maximum supported weight of 180 kg guarantee use by a wide variety of users. Easy access, the 360° adjustable handlebar, and the 180° swiveling console ensure ergonomics and comfort for the patient and ease of monitoring for the operator.
The device is certified as a medical device according to the CE 93/42/EEC directive and comes complete with accessories for immediate use in a healthcare environment.
Purchase the h1014_03 cycle ergometer now to ensure high-precision stress tests in your healthcare facility. Request a quote for multiple supplies or dedicated customizations!
Technical characteristics:
Dimensions: W 110 x D 53 x H 130 cm
Weight: 60 kg
Monitor: 10.1” resistive touchscreen
Operating system: Linux (PC iMX6 DL, 1GB RAM, Micro SD 8GB)
Resistance: 0–1400 constant Watts
Load increment: 1 Watt
Brake type: Computer-controlled electrodynamic
Feedback system: Load cell for torque measurement
Effort adjustment: Cadence-dependent or independent
Drive: Chain
Pedaling speed: 3 – 130 RPM
RPM display: LED scale on the opposite side of the display
Power supply: 100–240V~, 50–60 Hz, 1.6–0.7A
Saddle adjustment: For heights from 120 cm to 210 cm
Maximum user weight: 180 kg
Certification: CE 93/42/EEC
Wheels for transport
Power cable
RS232 cable
360° adjustable handlebar
180° swiveling console
User benefits:
FAQ:
Is this model suitable for high-intensity stress tests?
Yes, thanks to a maximum power of 1400 Watts, it is perfect for high-load cardiovascular tests, even on athletes.
Is the braking automatic?
Yes, it is controlled by a computer with load cell feedback, for automatic effort management.
Can I adjust the effort during exercise?
Yes, the minimum increment of 1 Watt allows for precise and continuous adjustments even in real time.
Is it possible to connect external monitoring systems?
Yes, via the RS232 port, you can integrate the cycle ergometer with analysis software or external monitoring systems.
Is the device certified for medical use?
Yes, it complies with the CE 93/42/EEC Directive, specific for medical devices.
Mini buying guide:
For advanced clinical tests or high-intensity functional evaluations, it is essential to choose a cycle ergometer with a controlled electronic brake, wide power output, and adjustment precision.
The H1014_03 model meets these needs with a resistance range up to 1400 Watts, fine effort adjustment, load cell feedback, and monitoring via a touchscreen interface.
Compatibility with external software and adjustable ergonomics make it perfect for outpatient clinics, cardiology departments, sports medicine, and high-level rehabilitation centers.
High-performance stress test cycle ergometer, hospital cycle ergometer 1400 Watt, ergometer with electrodynamic brake and feedback, CE cardiovascular test cycle ergometer, medical device for stress tests.
