• Flexible thermal modulation on macro-surfaces: The possibility of manually adjusting the power from 30 to 50 kW allows the operator to uniformly heat a comfort area of up to 500 m² depending on external climate variations.
• Immediate thermal delivery at high flow rate: The forced convection system instantly moves a volume of hot air equal to 650 m³/h, eliminating waiting times for reaching thermal stability in construction sites or large open warehouses.
• Structural resistance in the harshest industrial contexts: The robust external metal shell, treated with epoxy powder coating, protects the internal circuits from scratches, mechanical shocks, corrosion and wear over time.
• Quick and safe ignition without complex connections: The piezoelectric ignition device ensures an immediate, intuitive and complication-free start-up in the field, operating in plug and play mode.
• Double active and monitored accident prevention protection: The interaction between the electronic flame controls and the thermal protection on the motor prevents both mechanical overheating and gas delivery anomalies.
• Maximum mobility with minimum footprint on the ground: Thanks to a low weight of only 7 kg and ultra-compact dimensions (580x225x360 mm), the unit is extraordinarily light to lift, reposition and transport with ease.

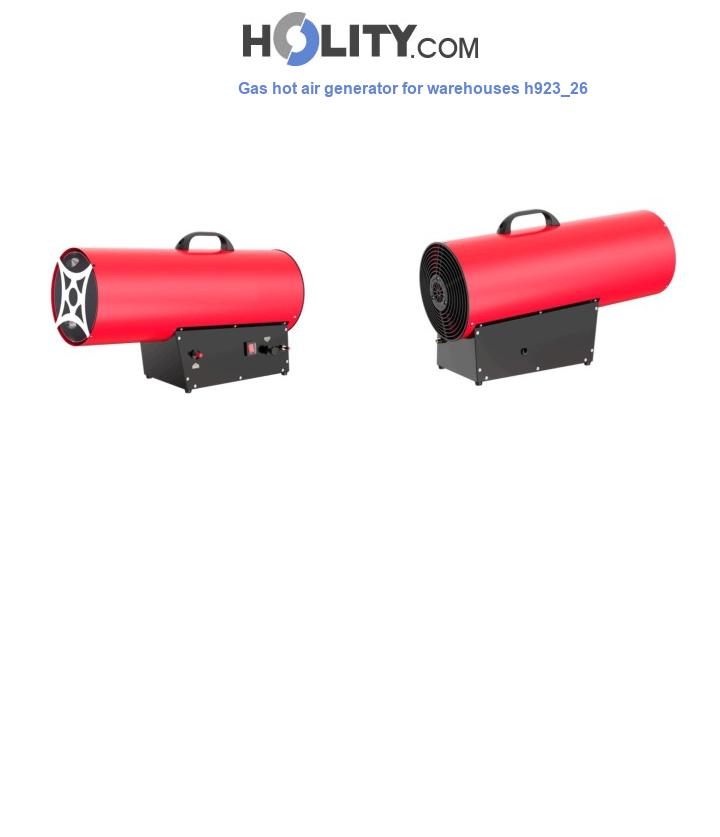

This forced convection gas hot air generator finds its optimal application in temporary climate control and emergency or process heating within open warehouses, construction sites, large industrial sheds, logistics depots, mechanical workshops and large work areas exposed to frequent air currents. Developed to operate as a flexible mobile thermal solution, thanks to its maximum power of 50 kW and a net weight of only 7 kg, it represents the ideal tool to be moved in departments that require covering a comfort area of up to 500 m², acting in total safety in compliance with the precise geometric dimensions (580x225x360 mm) established by the manufacturer.

The h923_26 model is the right choice when the corporate thermal safety plan requires a powerful gas heater (up to 50 kW), extremely lightweight (7 kg) and designed to cover large commercial or logistics surfaces (500 m²) without permanent installations. It proves to be far preferable to traditional heavy fixed systems or small electric radiators because the internal stainless steel burner fueled by G30 gas at 1500 bar develops a forced flow rate of 650 m³/h with proportional consumption (2.18-3.63 Kg/h). Choosing this convection system means investing in a durable machine, protected by epoxy powders and equipped with integrated anti-overheating systems on the motor, configured exactly according to the technical specifications of the h923_26 model.

What does the forced convection system consist of and how does the stainless steel burner of this unit work?

The forced convection system works by sucking air from the environment, conveying it through the internal core of the machine and pushing it out in the form of a continuous high-speed thermal flow, reaching a flow rate of 650 m³/h. The heart of this technology is the burner made of stainless steel which, by resisting very high thermal stresses without deforming, ensures optimal, reliable combustion and uniform heating of the entire volume of treated air.

Which electronic and mechanical systems govern personnel safety against the risk of overheating at work?

The accident prevention safety of the h923_26 generator is entrusted to two coordinated protection devices: on one hand, there are dedicated electronic controls on the flame that constantly monitor its stability to isolate and protect the environment from any combustion anomalies or malfunctions; on the other hand, the fan motor integrates a specific thermal protection designed to prevent overheating of the windings, interrupting operation in case of excessive temperatures.

What are the gas consumption, electrical requirements and the maximum area covered by this 7 kg model?

The generator develops an adjustable nominal thermal power from 30 to 50 kW, ideal for covering and optimally heating a comfort area of up to 500 m². The consumption of G30 gas fuel varies proportionally to the set regulation, ranging from a minimum of 2.18 kg/h up to a maximum of 3.63 kg/h with a pressure of 1500 bar. For the operation of the control circuits and ventilation, the heater requires a standard electrical power supply of 220-240 V / 50 Hz. The structure weighs only 7 kg and measures 580 x 225 x 360 mm.
