This outdoor fountain is designed to provide a robust and durable water point in public and private contexts. The supporting structure is made of square-section tubular steel, a technical choice that ensures high structural rigidity. The system is designed to simplify management operations: the upper part is equipped with an inspectable steel cap, fixed with screws, which allows immediate access to the tap for maintenance or replacement without dismantling the entire column. Protection against atmospheric agents is guaranteed by a galvanization treatment followed by thermosetting polyester powder coating, which prevents oxidation in the long term.
Technical features
Fountain column dimensions: W. 220 x D. 150 x H. 1008 mm
Total depth (column + gully): 677 mm
Structure material: Galvanized steel painted with thermosetting polyester powders
Column section: Square tubular
Standard color: Anthracite
Taps: Nickel-plated brass with front button and return spring (normally closed)
Internal components: Stainless steel piping with 1/2" threaded terminal
Drainage system: Painted cast iron gully with frame and removable grid for cleaning
Fixing: Square base plate with 4 holes prepared for bolting to the ground
Maintenance: Removable top cap for quick access to hydraulic fittings
Options and customizations
Colors available on request: Corten, Grey RAL 7016, Grey RAL 9006, Red RAL 3000, Green RAL 6005.

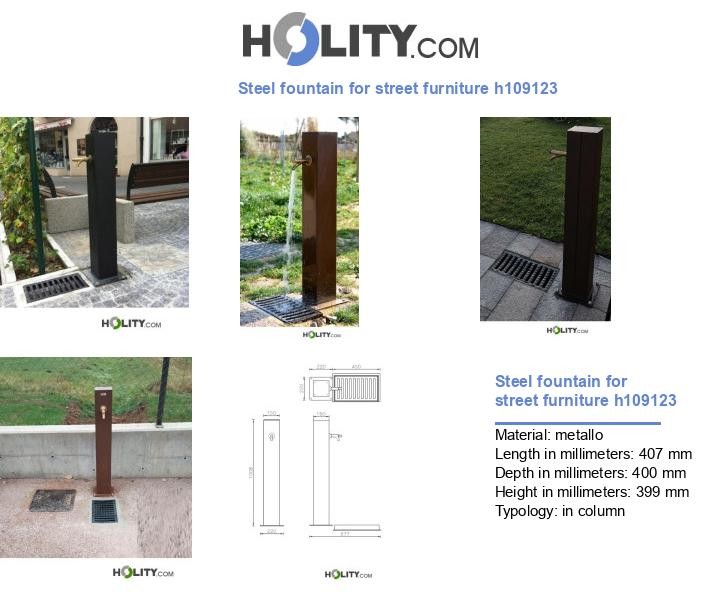

Image for illustrative purposes only
User benefits
Corrosion resistance: The double treatment of galvanization and powder coating ensures the material’s integrity even in outdoor environments exposed to humidity and rain.
Water efficiency: The tap with return spring prevents accidental continuous water flow, drastically reducing water waste and management costs.
Ease of installation: The welded and perforated base plate allows for quick and perfectly level anchoring on paving or concrete plinths.
Easy maintenance: The design with a removable top cap and removable gully grid reduces technical intervention and cleaning times.
Mechanical stability: The use of tubular steel and cast iron guarantees superior resistance to impacts and mechanical stress typical of high-traffic areas.
Scope of application
This fountain is suitable for setting up public green areas, city parks, and cycle-pedestrian paths. Its robustness also makes it suitable for urban squares and commercial areas. In the private sector, it represents a functional solution for communal gardens, relaxation areas in accommodation facilities, and company courtyards requiring a durable water point with a minimalist design.
Why choose it
The fountain is the ideal choice when a combination of professional aesthetics and vandal resistance is required. Compared to cheap aluminum or plastic solutions, the use of galvanized steel and cast iron ensures a longer service life under intense use conditions. It is the recommended product for projects that must comply with strict water saving parameters thanks to the push-button tap, and it is particularly appreciated by maintenance workers for the ease of access to hydraulic fittings through the inspectable top cap.
FAQ
What is the advantage of the push-button tap compared to a traditional one?
The push-button tap with return spring ensures that the flow stops immediately after release. This prevents water leakage in case of forgetfulness or improper use, making the fountain ideal for unsupervised spaces.
Does the fountain comply with mechanical resistance regulations?
Yes, the tubular steel structure and the welded base plate are designed to resist environmental stress and accidental impacts typical of street furniture, while the surface treatments comply with anti-corrosion protection standards for outdoor use.
Is it possible to connect the drain to the sewage network?
Yes, the cast iron gully frame is designed to be installed on top of a collection siphon or embedded directly into the ground for the controlled runoff of rainwater and residual water.
