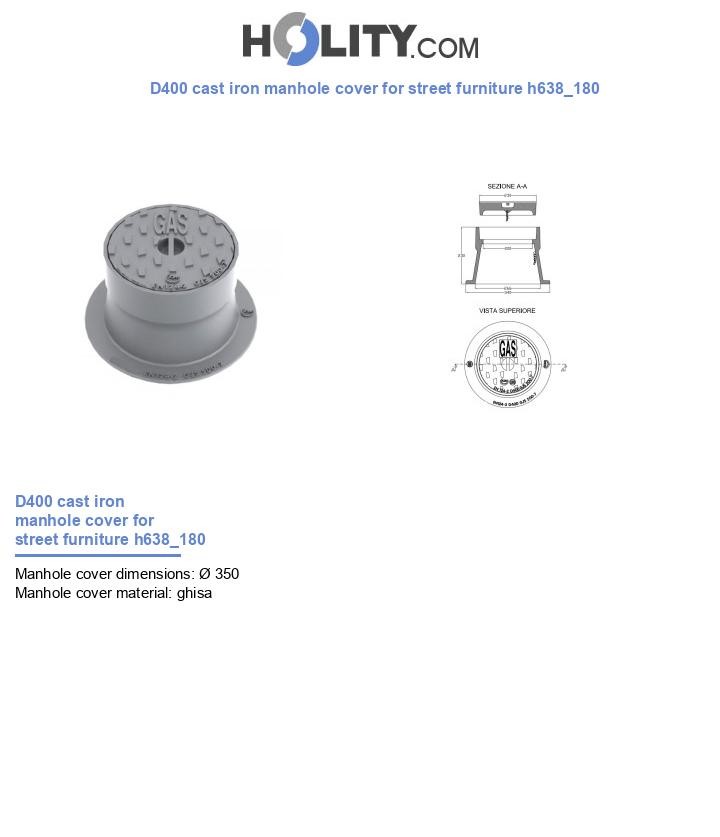

The D400 cast iron manhole cover for street furniture, code H638_180, is a highly resistant solution compliant with European regulations for use in high vehicular traffic urban areas. It is constructed from GJS-500-7 ductile iron, a material that guarantees high mechanical strength, durability, and excellent resistance to atmospheric and chemical agents.

The product fully complies with the UNI EN 124 standard, with load class D400, and is manufactured by an ISO 9001:2015 certified company, ensuring a production process that meets international quality standards.

The truncated cone frame is equipped with a continuous external perimeter flange that allows for perfect anchoring in the foundation, making the installation solid and secure. It also includes a fixing ring to connect the anchor chain to the lid, preventing accidental or unauthorized removal.

The circular lid is provided with anti-slip patterns that improve grip and facilitate rainwater runoff. There is also a specific slot that allows lifting via a suitable key. The space provided for inserting lettering (e.g., name of the contracting authority) allows for customization of the product based on the client’s needs.

Thanks to its compact dimensions and structural robustness, this manhole cover is ideal for urban roads, sidewalks, public parking lots, and industrial areas where long-term reliability and safety are required.

Buy the D400 H638_180 cast iron manhole cover compliant with UNI EN 124 now! Contact us for multiple orders, customizations, or to receive a dedicated offer.

Technical features:

• Material: GJS-500-7 ductile iron according to EN 1563

• Standard: UNI EN 124 – Class D400

• Manufacturer certification: ISO 9001:2015

• Frame shape: Truncated cone

• External diameter: Ø 350 mm

• Clear opening: Ø 200 mm

• Overall height: 310 mm

• Total weight: 27 kg

• Lid: Anti-slip, with space for lettering

• Lifting slot: Present

• Security chain rings: Included

• Anchor chain: Included

User benefits:

• Suitable: for heavy traffic thanks to class D400.
• Made: of ductile iron, a material resistant to impact and corrosion.
• Installation: secure due to the truncated cone shape with flange.
• Prevention: of theft with the integrated anchor chain.
• Customizable: with lettering or identification of the contracting authority.

FAQ:

1. What is the resistance class of this manhole cover?
   The product is classified as D400 according to UNI EN 124, therefore suitable for roads and areas subject to heavy vehicular traffic.

2. Is a security system included to prevent lid removal?
   Yes, the manhole cover is supplied with an anchor chain and relative fixing rings to prevent accidental or unauthorized removal.

3. Can I easily lift the lid for maintenance?
   Yes, there is a dedicated slot for inserting a lifting key, making the operation simple and safe.

4. Is the product anti-slip?
   Yes, the lid is equipped with well-distributed anti-slip patterns to improve grip and facilitate water runoff.

5. Can I customize the lid with a logo or the authority’s name?
   Yes, a dedicated space is available for inserting custom lettering upon request.

Mini buying guide:
When choosing a manhole cover for urban use, it is essential to consider some fundamental characteristics.

First, verify that it complies with the UNI EN 124 standard, which classifies manhole covers based on their load capacity.

For environments such as roads, parking lots, or industrial areas, class D400 is recommended, ideal for supporting the weight of heavy vehicles.

The material is another crucial factor: ductile iron ensures excellent durability and resistance to corrosion.

Prefer models with security chains and anti-slip systems, which improve safety for both pedestrians and operators.

Finally, check if the product offers customization options, useful for identification in public or municipal contexts.
