• Forced transit without evasion: the channel design with forced-guidance solutions physically prevents operators from bypassing the station, guaranteeing total and systematic sanitization of all incoming personnel.
• Automation and resource saving: automated activation via the two photoelectric barriers starts the water flow (7 l/min) and the motors only during actual passage, avoiding unnecessary waste during periods of inactivity.
• Simplified maintenance of the brush unit: the upper part of the channel structure can be easily folded, allowing operators to immediately access the internal rollers for extraction and cleaning operations.
• Maximum safety in operating environments: placing the control cabinet on the wall isolates the electronics (powered at 400 Volts) from contact with water, detergents, and washing sludge, drastically reducing the risk of failure.
• Instant disposal of stubborn mud: the simultaneous rotation of two horizontal nylon brushes, combined with the flow of water and mixed detergent, breaks up even the most stubborn dirt in a few moments, speeding up passage flows.

This channel station is strategically indicated for setting up hygiene filters, airlocks, and forced-transit gates within high-flow industrial environments. It finds its ideal placement in the food industry, large slaughterhouses, dairies, and packaging plants, where it is mandatory to decontaminate personnel soles before accessing controlled contamination rooms. Thanks to its unavoidable length, it is also a fundamental infrastructure for chemical-pharmaceutical plants and large construction sites, allowing for the safe management of rapid and consecutive washing of numerous operators without creating blockages at the entrance of the work department.

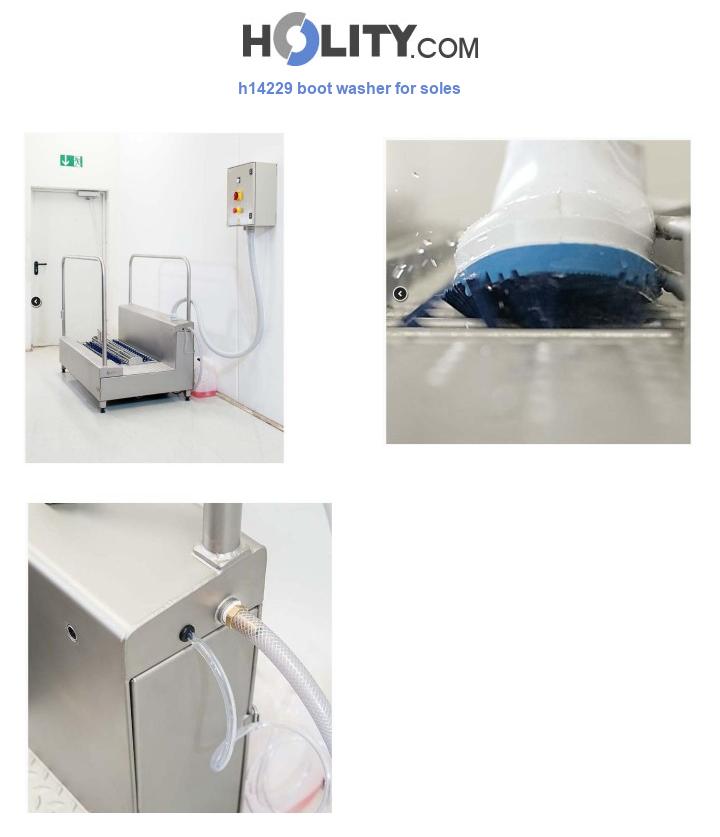

The h14229 boot washer represents the most rigorous engineering choice when management’s goal is to impose a strict hygiene protocol by completely eliminating the possibility of human error or evasion. Unlike classic static basins or manual activation stations, this forced-guidance system fully automates the decontamination process in motion ("walk-through") for every operator in transit, optimizing department entry times. It is the definitive investment for companies that need to remove enormous amounts of dirt in a small space, using heavy equipment (180 kg) in AISI 304 stainless steel, designed to keep its electrical panel safe from splashes and atmospheric wear.

How does this forced-transit channel differ from a traditional horizontal platform boot washer?

Unlike platform or fixed-station models, in which the operator is forced to stop to activate the water or insert one foot at a time, the channel solution guarantees continuous washing in motion. Activation by photoelectric barrier and the work of the two long nylon brushes allow the user to walk smoothly through the machine, sanitizing the soles without interrupting their gait, thus reducing waiting times during the busiest shift changes.

Does the electrical cabinet insulation comply with regulations for installation in production areas subject to frequent washing?

Absolutely yes. The system is engineered to ensure total compliance and safety in humid environments. The switch cabinet, equipped with a certified IP 55 protection class against dust and water jets, is not integrated into the channel frame but is supplied separately for wall mounting. This moves the 400 Volt power supply away from the splash zone, sludge, and foot traffic, reducing any risk of short circuits.

How are the extraction and inspection operations of the internal horizontal rollers carried out?

The architecture of the channel is designed to reduce machine downtime during the maintenance phase. The entire upper segment of the machine is in fact easily and quickly foldable, unlocking direct access to the internal tank. This allows authorized personnel to remove the long nylon brushes to proceed with deep cleaning, removal of trapped debris, or replacement of bristles without the use of complicated tools.
