Vulcanized rubber cable protector with 3 channels. Dimensions: W 120 x D 21 x H 6.5 cm.
To know shipping costs, add the product to your cart
Delivery Times 10-15 days
Mon-Fri 9-13 / 14:30-18:30

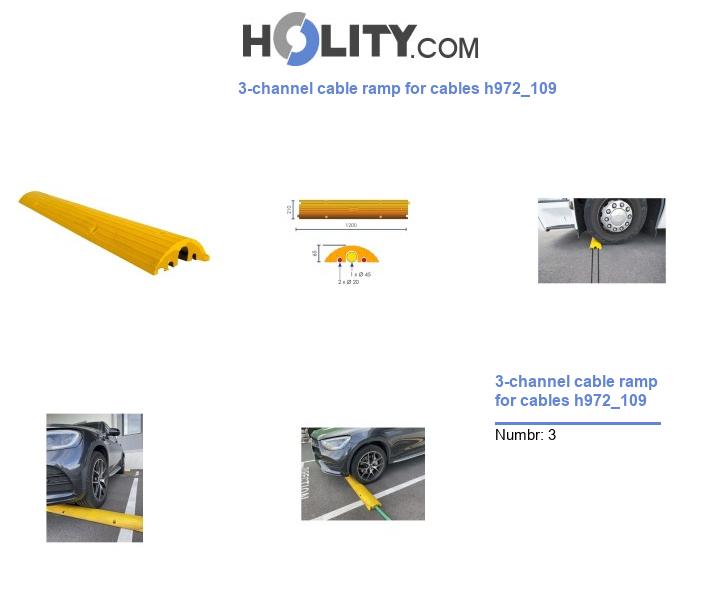

The H972_109 3-channel cable ramp is a professional solution for the safe and tidy protection of cables and hoses in industrial, logistical, or temporary environments such as construction sites, trade fairs, warehouses, loading and unloading areas, or public events. Made of vulcanized rubber, it offers maximum resistance to the passage of vehicles up to 40 tons, ensuring reliability even under intensive use conditions.
The system features three internal channels: two 20 mm channels for light cables and a larger central 45 mm channel, perfect for electrical cables or larger hoses. The ends with inverted dovetail interlocking allow for the quick connection of multiple modules in series, creating a continuous, stable, and safe path.
The product also includes 4 fixing points for ground anchoring, improving stability in areas subject to constant traffic. It is not recommended for use with forklifts with polyamide or rubber wheels, as these may not guarantee correct grip and could compromise safety.
The high-visibility yellow coloring improves visual signaling, preventing accidental trips or impacts, and is ideal for marking the presence of cables or obstacles along the path.
Protect your cables with safety and order: choose the H972_109 cable ramp for professional applications. Contact us for modular supplies or personalized quotes.
Technical features:
Material: Vulcanized rubber
Color: High-visibility yellow
Number of channels: 3 (2 x 20 mm, 1 x 45 mm)
Dimensions: W 120 x D 21 x H 6.5 cm
Weight: 15.00 kg
Maximum load capacity: Up to 40 tons
Joining system: Inverted dovetail interlocking
Fixing: 4 attachment points
Recommended use: Industrial areas, construction sites, events, pedestrian zones
Not recommended for: Forklifts with polyamide/rubber wheels
User benefits:
FAQ:
Which cables can I insert into the ramp?
You can insert cables and hoses up to 45 mm in the central channel and up to 20 mm in the two side channels.
Is the ramp suitable for use with forklifts?
It is not recommended for use with forklifts equipped with polyamide or rubber wheels, which could slip or damage it.
How do multiple ramps connect together?
Thanks to the inverted dovetail system, it is possible to join several modules simply and stably.
Is floor fixing necessary?
Not mandatory, but for intensive or outdoor use, it is recommended to use the 4 available fixing points.
Is it weather-resistant?
Yes, vulcanized rubber is resistant to rain, industrial oils, and extreme environmental conditions.
Mini buying guide:
When choosing cable ramps for high-traffic environments, it is essential to evaluate the number and size of the internal channels, the load resistance, and the visibility of the product.
The H972_109 offers an excellent balance between mechanical protection, modularity, and versatility of use, thanks to its three separate channels and its vulcanized rubber structure.
It is the ideal choice for companies looking for reliability, order, and safety, with simple installation and the possibility of expansion for longer paths.
3-channel cable ramp, industrial vulcanized rubber cable protector, heavy traffic cable protection, high visibility yellow cable ramp, cable ramp for electrical cables events and construction sites, modular ramp with dovetail interlocking.
