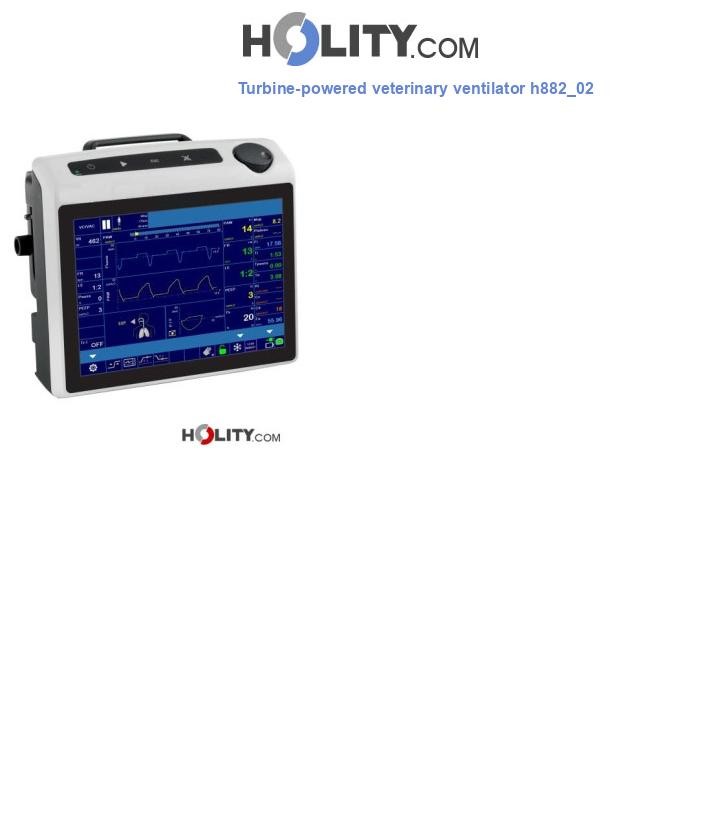

The veterinary resuscitation lung ventilator is an advanced device designed to ensure effective respiratory support during emergencies. This model is equipped with a 10.4-inch touch screen display that offers an intuitive and easy-to-use interface. Its turbine air propulsion allows it to deliver an air flow of up to 190 liters per minute, ensuring optimal ventilation. With compact dimensions of 290 mm in length, 215 mm in depth and 245 mm in height, it is designed to be easily integrated into clinical environments. The ventilator offers a wide range of ventilation modes, including APCV, APCV-TV, PSV, PSV-TV (Auto Weaning), VC/VAC, V-SIMV+PS, P-SIMV+PS and CPAP/PSV, thus adapting to the different needs of the patient. It also includes special modes such as SIGH and Apnea BACK-UP (NIV PSV, NIV PSV-TV, CPAP/PSV) to manage apnea situations. Finally, a MANUAL mode is also available for personalized control of settings. This ventilator is designed to offer reliable and precise performance in veterinary resuscitation, making it an essential tool for professionals in the sector.
Technical specifications:
Turbine-powered lung ventilator
Dimensions: L. 290 x D. 215 x H. 245 mm
Weight: 5.5 kg
Power supply: 100 - 240Vac / 50 - 60Hz
Power consumption: Max 60 VA
External low voltage power supply: 12 Vdc / 7 A
Internal battery: 1 x 12Vdc - 4.2 Ah Ni-Mh battery
Ventilatory frequency V-SIMV and P-SIMV: From 1 to 60 bpm
Inspiratory time in SIMV: From 0.2 to 5.0 sec
I:E Ratios: From 1:10 to 4:1
Inspiratory pause: From 0 to 60 % of inspiratory time
Inspiratory pressure limit (Pinsp): From 2 to 80 cmH2O (depending on the set value of low and high pressure alarm)
Inspiratory flow acceleration: Only in pressure-based operating modes: 1, 2, 3, 4 (acceleration ramp slope) - (4 maximum acceleration)
PEEP: From OFF, 2 to 50 cmH2O
PEEP regulation: Microprocessor-controlled electro-valves
O2 concentration: O2-Air mixture enrichment via low pressure O2 inlet
Trigger detection method: Via sensor (Pressure or Flow)
Inspiratory flow (FLOW): 190 l/min
Automatic Flow-by
PS (support pressure): From 2 to 80 cmH2O (PSV, V-SIMV, P-SIMV)
SIGH VC/VAC mode: Frequency: from 40 ÷ 500 bpm (1 bpm step) // Amplitude: from OFF, 10 ÷ 100% of set tidal volume (10% step)
CPAP/PSV: Pressure: from 3 to 50 cmH2O
Patient circuits: 150 cm dual-tube circuits
MENU function, SET function
Function for Loop, Curves, Parameter Map display selection
INSP. hold (range 5.0 - 15.0 sec / 0.1 sec step)
EXP. hold (range 5.0 - 10.0 sec / 0.1 sec step)
MAN command (manual ventilation)
10.4” Touchscreen display
Display viewing area: 262x163 mm
On-display controls (Side keyboard for quick access to functions and encoder knob for: selection, setting and confirmation of physiological respiratory parameters; selection and direct activation of functions)
Displays and settings (Operating Mode setting; Display of alarm signals and messages; Setting and monitoring of physiological respiratory parameters; Display of graphs and additional respiratory parameters; MENU function for setting operating parameters; Activation of special functions; Display of operating mode, clock, date and time function; Software version display)
MENU function
SETUP settings
Trends: Up to 72 hours of all measured parameters
Events: Up to 2000 events can be recorded, including alarms
Patient data: Patient data can be set and deleted
Default parameters: Default parameters can be restored
SET function (settable physiological respiratory parameters): CPAP (cmH2O), Slope, I:E, RR (bpm), RRsimv (bpm), Pause (%), PEEP (cmH2O), Pinsp (cmH2O), PMax - Pmin - PS (cmH2O), SIGH (% - bpm), Ti (s), Ti Max (s), Tr. E (%), Tr. I (L/min - cmH2O), Vte - Vti (ml), BACK-UP parameters
