The Deck-mounted liquid soap dispenser h218_252 is an automatic deck-mounted device developed for installation on washbasins or countertops. This technical furnishing component resolves the operational criticality of manual contact and cross-contamination in restrooms, allowing for automatic touchless dispensing. Aimed at a professional target of managers of hospitality facilities, offices, and public spaces, the dispenser is suitable for high-frequency use areas with high hygiene requirements. The body is made of chrome-plated cast brass according to the EN248 standard, integrated with internal plastic components (POM and ABS) in a robust and vandal-proof structure available in different colors. Operation is managed exclusively with an electric power supply (220 V, 50/60 Hz - AC 220V - 50/60Hz / DC6V). Dispensing occurs by placing hands under the distributor within the laser sensor detection range (from 5 to 23 cm); the dispenser activates automatically and remains in operation as long as the hands stay within range, with an adjustable maximum operating time. The refillable tank offers a capacity of 1500 ml and is suitable for liquid soap or hand sanitizer (7.5%) with viscosity between 100 and 3800 cPs, releasing a standard soap discharge of 1 ml (adjustable). The device dimensions are 150 mm in height, 34 mm in width, and 116 mm in depth (150 x 34 x 116 mm). The dispenser is supplied with fixing elements and all necessary accessories for installation. For maintenance, the use of pH-neutral soap and water with drying by a clean cloth is recommended, taking care to protect the dispenser from splashes when cleaning the bathroom with aggressive products.
Technical features
Type: Automatic deck-mounted liquid soap dispenser (washbasin or countertop mounting)
Body material: Brass (chrome-plated cast brass according to EN248 standard)
Component material: Plastic components (POM and ABS)
Color variants: Available in different colors
Actuation: Integrated laser sensor
Power supply: Exclusively electric current (220 V, 50/60 Hz - AC 220V - 50/60Hz / DC6V)
Sensor detection range: From 5 to 23 cm
Capacity: 1500 ml (refillable)
Standard soap discharge: 1 ml, adjustable
Allowed soap viscosity: 100-3800 cPs
Detergent compatibility: Liquid soap or hand sanitizer (7.5%)

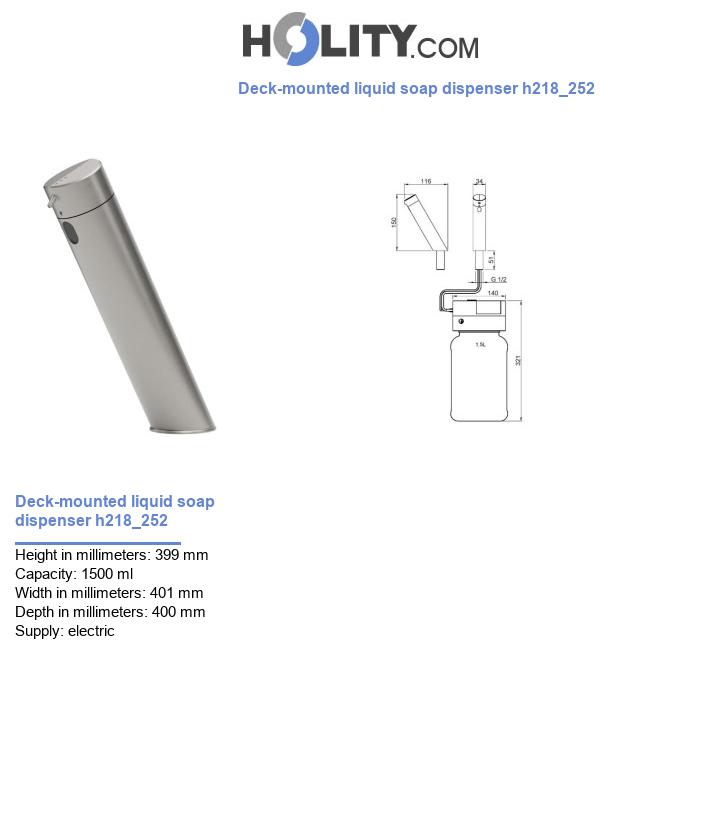

Dimensions (H x W x D): 150 × 34 × 116 mm
Standby consumption: <2 mA
Structure: Robust and vandal-proof
Adjustable functions: Adjustable maximum operating time
Certifications and compliance: CE; complies with European directives on electrical safety 2014/35/EU, electromagnetic compatibility (EMC) 2014/30/EU, and construction products 305/2011/EU, according to EN 817:2008 and EN 15091:2013 standards
Equipment: Supplied with fixing elements and accessories necessary for installation
Maintenance indications: Cleaning with pH-neutral soap and water, drying with a clean cloth; protection from splashes when using aggressive cleaning products in the room
* Images are purely indicative
User Benefits
Touchless operation and maximum hygiene: opening via laser sensor with detection from 5 to 23 cm allows for soap dispensing without touching the structure, preventing the transmission of bacteria.
Continuous dispensing without batteries: the exclusively 220V electric power supply guarantees the constant operation of the device, avoiding service interruptions.
Physical resistance and protection in public places: the EN248 chrome-plated cast brass body and the vandal-proof structure protect the dispenser from impacts and tampering.
Detergent consumption control: the 1 ml standard discharge and the possibility to adjust both the dose and the maximum operating time reduce soap waste.
Reduced refill times: the 1500 ml internal refillable tank ensures high autonomy of use before requiring a new filling.
Scope of application
This automatic dispenser is designed for fixed installation on a washbasin or countertop within restrooms that require high cleanliness standards. It finds suitable placement in high-frequency use areas with high hygiene requirements, such as offices, hospitality facilities, airports, stations, shopping centers, restaurants, and public buildings. It is the right tool for setting up washbasin points with dimensions of 150 x 34 x 116 mm equipped with preparation for 220V electric current and intended for dispensing liquid soap or 7.5% sanitizer.
Why Choose It
The h218_252 model is the correct choice when public bathroom design requires a touchless laser-activated dispenser connected directly to the 220V electric current. It meets the needs of managers looking for a deck-mounted device with an EN248 chrome-plated cast brass body with high vandal-proof resistance, provided with CE certification and compliance with European directives 2014/35/EU, 2014/30/EU, and 305/2011/EU and equipped with a 1500 ml refillable tank for optimized usage flow management.
FAQ
How does the 220V electric power supply of this dispenser differ from battery-powered models?
Unlike dispensers powered by standard batteries that require periodic replacement and suffer from voltage drops, the h218_252 device operates exclusively via connection to the 220V electrical grid, guaranteeing continuous operation and standby consumption of less than 2 mA.
Which safety regulations and European directives does the h218_252 dispenser comply with?
The dispenser is provided with CE marking and complies with European directives on electrical safety 2014/35/EU, electromagnetic compatibility (EMC) 2014/30/EU, and construction products 305/2011/EU, respecting the requirements of EN 817:2008 and EN 15091:2013 standards.
