Interlocked double pass-through window in AISI 304 stainless steel. Dimensions: W 90 x D 30 x H 140 cm.
To know shipping costs, add the product to your cart
Delivery Times 35-45 days
During August, holity will continue its online sales, but delivery times may be longer than those indicated.
Mon-Fri 9-13 / 14:30-18:30

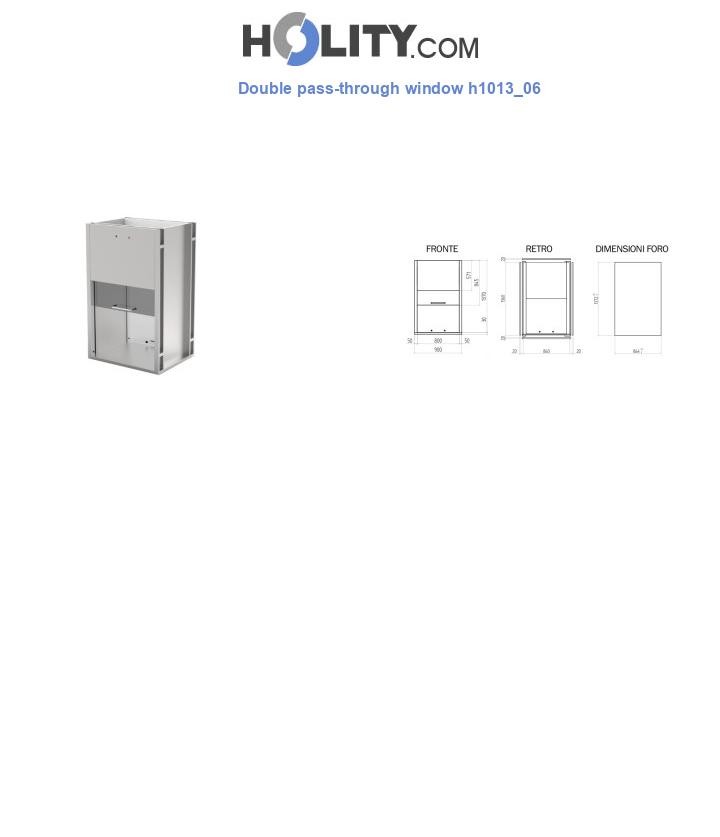

The H1013_06 operating room pass-through is an interlocked double pass-through window, designed to ensure maximum safety and hygiene in the transfer of instruments and materials between sterile and non-sterile areas within hospital environments.
Made entirely of AISI 304 stainless steel, it is ideal for healthcare contexts thanks to its corrosion resistance, robustness, and ease of cleaning. This material ensures high performance in environments where rigorous hygienic-sanitary standards are required. The handles are made of polyamide color grey, diameter 20 mm and center distance 250 mm.
The interlocked structure allows the alternate opening of the two doors, preventing both from being open simultaneously. This system is essential to avoid cross-contamination between the two environments separated by the window. The window is equipped with 2 safety glass panes 4+4 transparent. If the glass should break in the event of an impact, the PVB plastic sheet inserted inside holds the glass fragments.
The dimensions of model H1013_06 are 900 x 300 x 1400 mm (W x D x H), designed for wall installation in surgical environments or adjacent sterile areas.
Request a personalized quote now for model H1013_06. Reserved conditions for healthcare supplies.
Technical features:
Type: Interlocked double pass-through window
Material: AISI 304 stainless steel
2 glass panes: transparent safety glass with PVB plastic
2 handles: in grey polyamide
Structure: Double door with interlocking system
Opening: Alternate (interlocking)
Dimensions: W 90 x D 30 x H 140 cm
User benefits:
FAQ:
Is the window single or double?
It is a double window.
Is the window equipped with an interlocking system?
Yes, the window is equipped with an interlocking system.
What is the material used?
AISI 304 stainless steel.
What are the product dimensions?
Its dimensions are W 900 x D 300 x H 1400 mm.
Is it suitable for operating rooms?
Yes, it is specific for healthcare environments with sterile separation.
Short buying guide:
For high-security healthcare environments, such as operating rooms and sterile rooms, choosing an interlocked double pass-through window is strategic to ensure the controlled and safe transfer of instruments.
The H1013_06 model, thanks to its AISI 304 stainless steel structure and interlocking mechanism, allows operation in total compliance with hygienic-sanitary protocols, minimizing contamination risks.
Interlocked double pass-through, stainless steel pass-through window, H1013_06 pass-through, sterile window for operating room, AISI 304 stainless steel pass-through.
