Red LED clock for operating room h775_20

Name: Red LED clock for operating room h775_20
SKU: h775_20
Price: 1002.14 EUR
Availability: InStock

€835.12 VAT excl.

€1,002.14 VAT incl.

In stock

SKU

h775_20

Operating room clock with keyboard. Power supply: PoE. Dimensions: W.460 x D.45 x H.147 cm.

Optional 1

Optional 2

Qty

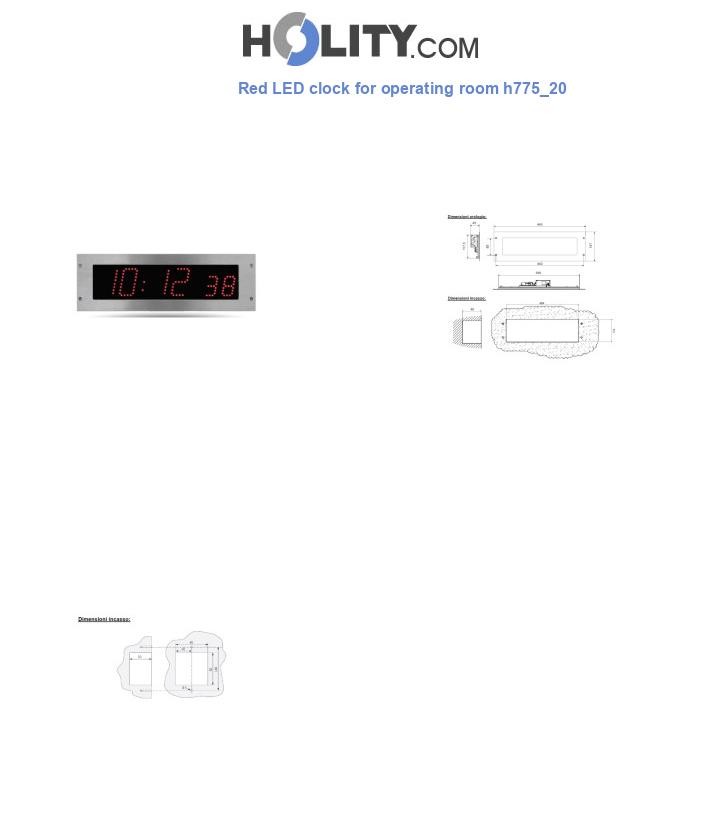

Technical sheet

ASK FOR AN OFFER

Go to Operating room clocks

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

This flush-mounted clock, designed for operating rooms, is equipped with a sanitizable stainless steel case and a mineral glass protection. It works via “Power over Ethernet” (PoE) through a LAN connection, ensuring a simple and safe installation.

Main Features:

Display: Display of hours, minutes, seconds or stopwatch function.
Character Dimensions: 7 cm for hours and minutes, 5 cm for seconds.
Brightness: Adjustable on four levels.
Viewing Angle: 120°.
Controls: Programmable and silenceable via two buttons.
LEDs: Digits consisting of 7-segment LED segments, each composed of three LEDs.
Energy Consumption: 55 mA.
Temperature Range: Operates in a range between -5°C and 55°C.

Clock technical specifications:

Red LED digital clock
Stainless steel housing (IP65, IK07) with mineral glass protection and keyboard compliant with operating room requirements.
For indoor use
With keyboard
Hours, minutes and seconds display
Character height: 7 cm (5 cm for seconds)
Optimal reading distance: 30 meters
NTP movement operation
PoE power supply
Flush mounting with 4 holes
Viewing angle: 120°
Silent operation
Programming and setting via 2 buttons
Digits consisting of 7 segments with 3 LEDs each
Consumption: 55mA
Operating temperature: from -5 to 55°C
Weight: 2.2 kg
Electrical protection: class 2
Dimensions: W.460 x D.45 x H.147 mm

Keyboard technical specifications:

Stopwatch hours - minutes - seconds from 0 to 23:59:59
Waterproof with touch-sensitive keys
Time display button with LED indicator
Stopwatch function button with LED indicator
Start/Stop button.
Reset button: resets the stopwatch to zero.
Connection to the clock via 2-wire telephone cable; maximum length 20 meters.
Power supply via clock.
Possibility to manage up to 10 clocks.
Operating temperature: from 0 to 50°C
Protection rating: IP55
Weight: 255g

Separately, as an optional extra, it is possible to purchase the rear cover and the flush-mount keyboard, useful for protecting the clock from dust and moisture.

*Upon request and quotation, other LED colors are available
