This medical examination couch is an advanced diagnostic station designed for intensive use in hospital, clinical and outpatient environments. The distinguishing feature is the integrated electronic weighing system, which allows the patient’s weight to be detected while they remain comfortably lying down, minimizing effort for healthcare personnel and risks for patients with reduced mobility. The painted steel structure is sized to withstand high loads, ensuring stability and safety even when treating bariatric patients.
Technical features

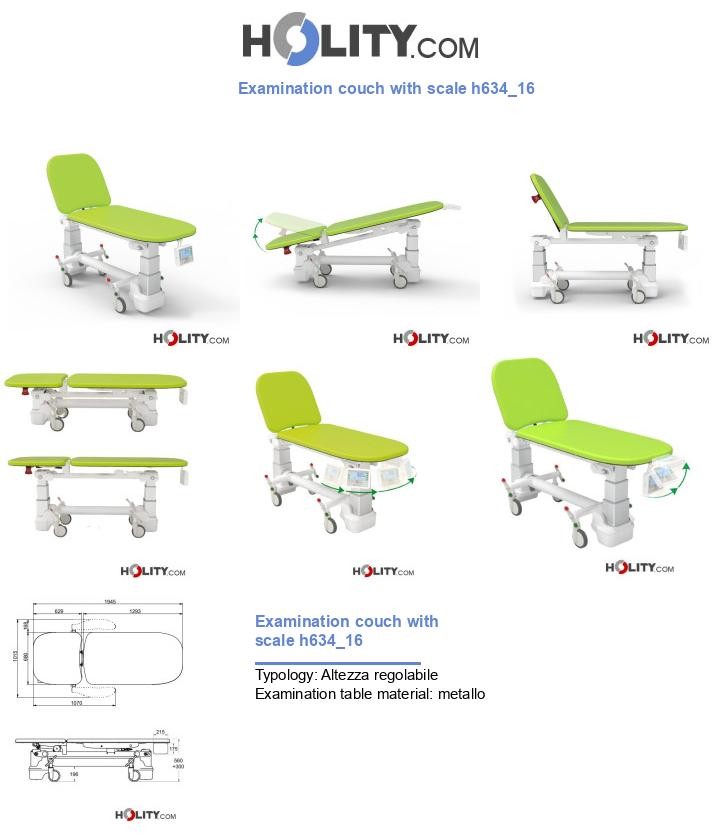

Total dimensions: L 194.5 x D 68 x H 56/86 cm
Structure: High-resistance white painted steel
Maximum capacity: 200 kg
Height adjustment: Electric via low-voltage motors (24 V) and handset with inhibition key
Trendelenburg movement: Trendelenburg and reverse Trendelenburg positions via motorized telescopic columns
Backrest: Adjustable from 0° to 70° with gas actuator and CPR quick release system for emergencies
Upholstery: Class 1IM eco-leather, antibacterial, antifungal and easy to sanitize
Mobility: 4 antistatic swivel wheels (diameter 150 mm) with centralized and directional braking system via bilateral pedals
Power supply: Multi-voltage 100-240 Vac 50-60 Hz with schuko cable
Safety and insulation: IP44 protection degree; compliant with Directive 93/42/EEC
Weighing system specifications
Display: Stainless LCD display box (22 x 16 x h5 cm) with 25-key keyboard
Accuracy: Minimum division of 20 g (up to 60 kg), 50 g (up to 150 kg) and 100 g (up to 200 kg)
Load cells: In stainless steel with a total capacity of 1000 kg and overload up to 2000 kg
Connectivity: RS232 or LAN 10/100 interface for integration with hospital management software
Functions: Automatic/manual tare subtraction, anti-blackout function for data saving, weight loss monitoring and countdown
Autonomy: External self-rechargeable 6 V emergency battery (approx. 24 hours of autonomy)
Options available on request
IV pole
Roll holder
Motorized backrest
Facial hole
Armrests
Customized upholstery colors
Image purely indicative
User benefits
Operational efficiency: The integration of the scale allows weighing during the examination, eliminating the need to transfer non-ambulatory patients to external devices.
Patient safety: The reinforced structure and CPR quick release ensure safe management even in emergency situations or with obese patients.
Certified hygiene: The antibacterial coating and simplified structure allow for deep disinfection against nosocomial infections.
Clinical precision: The triple-division weighing system ensures accurate data necessary for calculating pharmacological dosages.
Ergonomics for the operator: Electric height adjustment and bilateral brake pedals reduce biomechanical loads for healthcare personnel.
Field of application
The device is intended for professional use in hospital wards, dialysis centers, oncology departments and specialist clinics where weight monitoring is a fundamental clinical parameter. It is particularly suitable for managing patients with reduced mobility or bariatric patients who require stable and safe support surfaces during diagnostic procedures.
Why choose it
This couch is the right choice when clinical needs require constant weight monitoring without compromising patient comfort. It stands out for its mechanical robustness (up to 200 kg real capacity) and for its Italian-made weighing electronics, which guarantees compatibility with modern hospital information systems. It is the ideal tool for contexts where speed of intervention (thanks to the CPR release) and the precision of weight data are essential operational requirements.
FAQ
How does this model differ from a common examination couch?
Unlike standard models, this device integrates certified load cells and an LCD display for weighing, in addition to having motorized Trendelenburg movements and a reinforced structure specifically for heavy loads and intensive use.
Is the weighing system compliant for medical use?
Yes, the entire device complies with Directive 93/42/EEC concerning medical devices and the weighing system uses consolidated electronics to ensure precision and reliability in the healthcare sector.
What happens to the weighing data in the event of a power failure?
The system is equipped with an anti-blackout function that keeps the last data recorded in the memory and has a self-rechargeable emergency battery that guarantees approximately 24 hours of operational autonomy.
