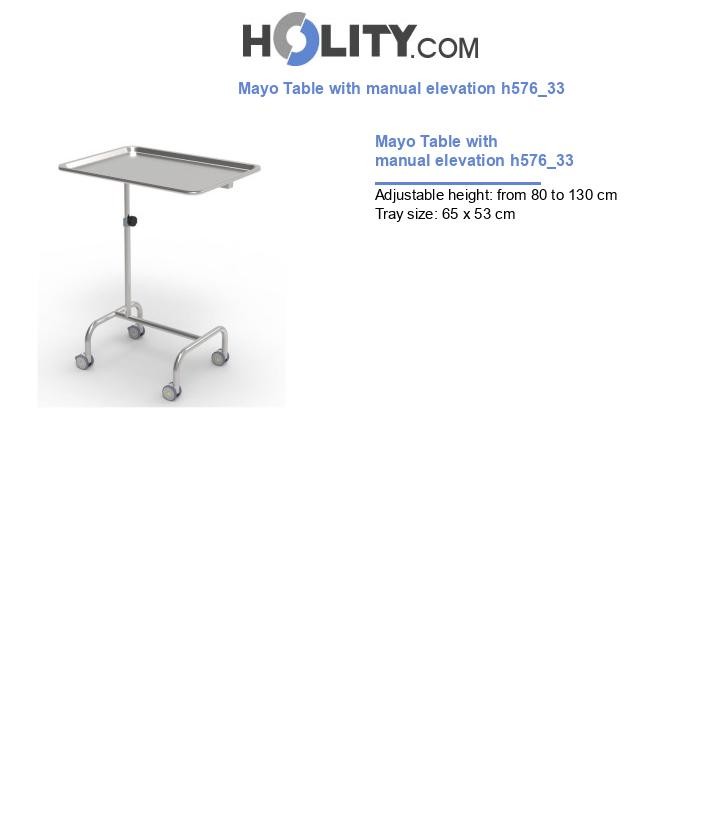

The Mayo instrument table represents an essential element for the organization of surgical instruments within the operating block. Designed to provide stable and secure support for the tools and devices needed during surgery, this model stands out for its manual elevation system operated by a safety handwheel, which allows for millimeter height adjustment. The 18/10 AISI 304 stainless steel structure guarantees maximum resistance to corrosion and excellent bacterial removal capacity, fundamental requirements for hospital sterilization protocols.
Elevation system: Manual with integrated safety handwheel
Height range: Adjustable from 800 to 1300 mm
Tray dimensions: W 650 x D 530 x H 20 mm (useful)
Overall dimensions: W 650 x D 530 x H 800/1300 mm
Tray configuration: Removable, non-swivel, with radiused perimeter and absence of open corners
Base: 4-spoke circular section for maximum stability
Movement system: 4 twin wheels Ø 75 mm in non-marking polymer
Wheel safety: 2 wheels with brake and 2 antistatic wheels, all equipped with thread guards
Hygienic properties: Low degree of bacterial retention and ease of decontamination
Image for illustrative purposes only
User benefits
Superior hygiene: The use of AISI 304 steel allows for optimal bacterial removal during cleaning cycles, reducing the risk of cross-contamination.
Operational precision: The safety handwheel allows for modular height adjustment between 800 and 1300 mm, adapting perfectly to the operator’s height or the height of the operating bed.
Electromagnetic safety: Antistatic wheels prevent the accumulation of electrostatic charges, protecting sensitive electronic equipment in the room.
Reduced maintenance: The manual elevation system is free of hydraulic or electrical components, ensuring a long operational life without the need for frequent technical interventions.
Cleaning ergonomics: The removable tray and radiused perimeter eliminate dirt accumulation points, speeding up post-surgery sanitization operations.
Scope of application
The table is specifically designed for use in operating rooms, outpatient surgery rooms, and professional sterilization contexts. Its compliance also makes it suitable in medical environments where fluid movement of heavy surgical instruments in confined spaces is required, always ensuring maximum stability and antistatic protection.
Why choose it
This model is the right choice for facilities looking for a reliable technical support without servomotors, minimizing the risks of machine downtime. It is ideal in scenarios where mechanical simplicity must be combined with the highest quality of materials. The operational prerequisite is the need for a large but extremely mobile work surface, capable of interfacing with different types of surgical beds thanks to the four-spoke base that facilitates the approach to the surgical field.
FAQ
What is the advantage of manual elevation compared to hydraulic?
Manual elevation via safety handwheel eliminates the risk of oil leaks or pressure drops typical of hydraulic systems, ensuring a fixed and immutable position over time without the need for periodic maintenance of the seals.
Is the work surface compatible with autoclave sterilization protocols?
The tray is made of AISI 304 stainless steel and is removable, facilitating manual cleaning procedures and chemical decontamination. For autoclave sterilization of the tray only, it is recommended to check the dimensions of the sterilization chamber provided at the facility.
Why are antistatic wheels present?
Antistatic wheels are essential in surgical environments to discharge electrostatic energy to the ground, preventing accidental discharges that could interfere with monitors or other sensitive electromedical devices.
