Rubber floor cable protector with 3 channels of 65x65 mm, drive-over up to 30T. Dimensions: L 910 x W 500 x H 81 mm.
To know shipping costs, add the product to your cart
Delivery Times 10-15 days
Mon-Fri 9-13 / 14:30-18:30

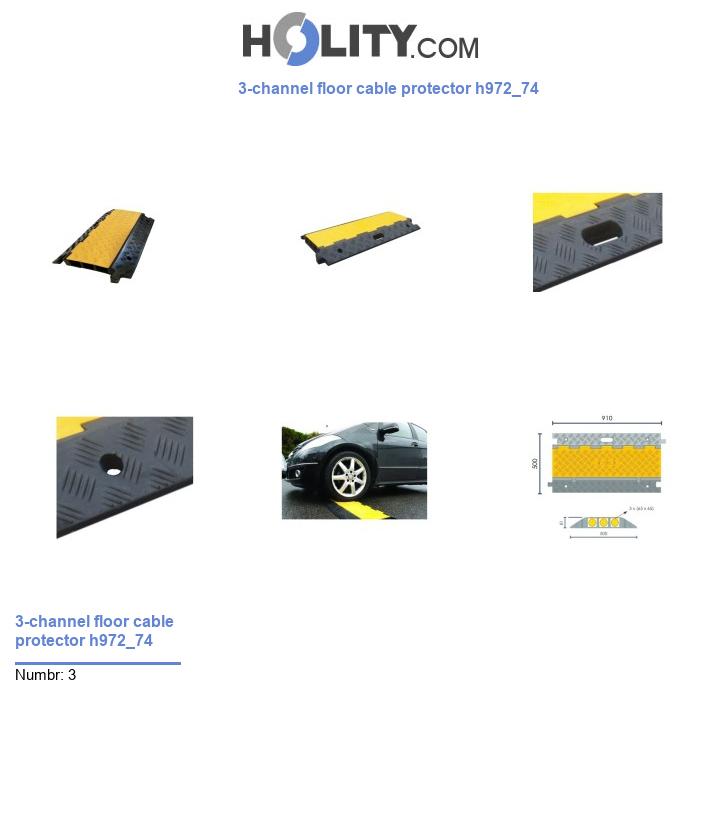

The H972_74 3-channel floor cable protector for temporary use is the ideal solution for protecting electrical cables, pipes, and conduits in temporary contexts such as events, construction sites, trade fairs, industrial environments, and logistics areas. Made of high-resistance rubber with a yellow thermoplastic cover, it ensures maximum visibility and safety in environments with pedestrian or vehicular traffic.
Equipped with 3 wide 65x65 mm channels, it allows the protected passage of large diameter cables or light piping. The structure is drive-over up to 30 tons per axle, making it suitable for the transit of heavy vehicles (trucks), although it is not recommended for forklifts with polyamide or rubber wheels.
The cable protector is modular: the inverted dovetails allow for easy connection with other modules, creating a continuous system across several meters of surface. The integrated handle allows for easy transport and rapid installation, even by a single person.
It is a product designed for temporary use, not intended for permanent installations or high-traffic road crossings.
Secure your temporary systems with a professional and drive-over solution. Order the H972_74 cable protector now or request a quote for corporate supplies.
Technical specifications:
Material: rubber with yellow thermoplastic coating
Color: high-visibility black/yellow
Length: 910 mm
Width: 500 mm
Height: 81 mm
Number of channels: 3
Single channel dimensions: 65 x 65 mm
Weight: 23.00 kg
Load resistance: up to 30T per axle
Operating temperature: from -20° to +60°
Interconnection: via inverted dovetails
Carrying handle: integrated
Installation: quick and tool-free
Fixings: not included
Use: temporary – non-permanent
Not suitable for: forklifts and heavy traffic roads
User benefits:
FAQ:
What is the load capacity of the cable protector?
It supports loads up to 30 tons per axle, ideal for heavy vehicles.
Is it suitable for permanent use?
No, the product is designed for temporary use, not for fixed installations.
Can it be used with forklifts?
No, it is not recommended for forklifts or carts with polyamide or rubber wheels.
Are the channels large enough for industrial pipes?
Yes, the 3 channels of 65 x 65 mm allow the passage of large cables or pipes.
How does it connect to other cable protectors?
It is equipped with inverted dovetails that allow for a secure and continuous interlocking with other modules.
Mini buying guide:
When managing cables and pipes in temporary contexts, it is fundamental to ensure their protection against pedestrian and vehicular traffic.
The H972_74 cable protector, with 3 channels of 65x65 mm, is perfect for industrial environments, trade fairs, events, or logistics areas, thanks to its robustness and ease of assembly.
The black/yellow color improves its visibility and safety, while the modular structure allows for flexible and scalable installation.
For environments with frequent forklift passage or heavy traffic, consider specific permanent solutions.
3-channel cable protector 65x65 mm, drive-over cable ramp for events, yellow/black rubber cable cover, temporary industrial cable protector, cable ramp for large diameter cables, 30T drive-over cable protection, modular floor cable protector.
*Images for illustrative purposes only.
*Upon request and subject to a quote, it is possible to add corners, intersections, and end caps.
*Upon request and subject to a quote, it is possible to request fixings for asphalt or concrete.
